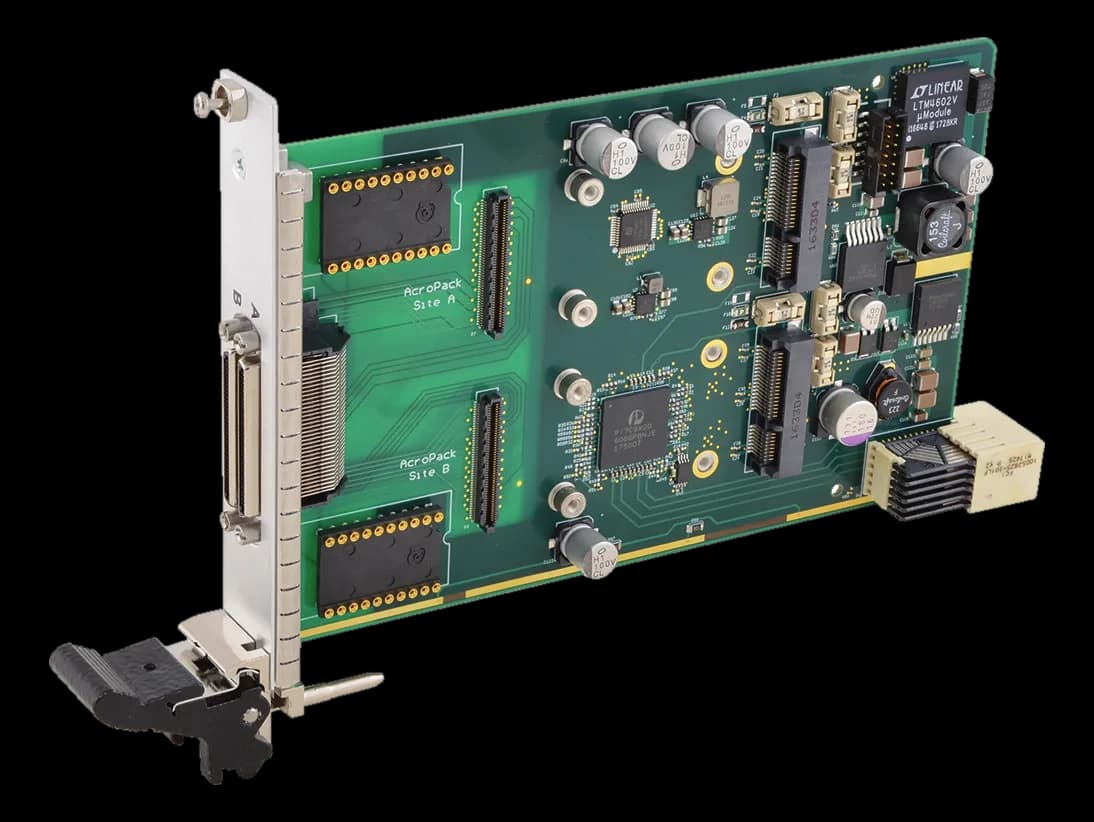

ACPS33103U CompactPCI Serial carrier card with two isolated AcroPack or mPCIe I/O slots
- Manufacturer
ACPS3310 is a CompactPCI Serial carrier card in 3U form factor: it hosts two AcroPack or mPCIe mezzanine modules inside a CPCI-S.0 chassis, with isolation on the expansion slots.
It finds use where measurement or communication I/O has to be added to an already installed CompactPCI Serial system. Cooling is by air and the declared consumption of the module is 5 W; the storage temperature covered is -55~125 °C. Software support covers Linux, VxWorks and Windows.
At a glance
- FPGA / processing: Artix-7®
- CPU cores: 2
- Memory: 30mm (1.18 in).
- Board function: Carrier
- Architecture standard: AcroPack
Technical specifications
| FPGA / processing | Artix-7® |
|---|---|
| CPU cores | 2 |
| Memory | 30mm (1.18 in). |
|---|
| Ethernet ports | 1Gb Ethernet with optional PoE |
|---|---|
| Connectors | USBCHAMP |
| Isolation | Yes |
|---|
| Board function | Carrier |
|---|---|
| Architecture standard | AcroPackCPCI-S.0 |
| Form factor | 3U 4HP |
| Bus interface | Interrupts: 32 channels configurable as below APSW-API-LNX |
| Power consumption | 5 W |
|---|
| Dimensions | 100 × 160 × 4 mm |
|---|---|
| Rugged / conformal coating | Conformal coating available on request |
| Operating temperature | -40–70 °C-40–85 °C |
|---|---|
| Storage temperature | -55–125 °C |
| Certifications | CE |
|---|
| Operating systems | VxWorksLinuxWindows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
