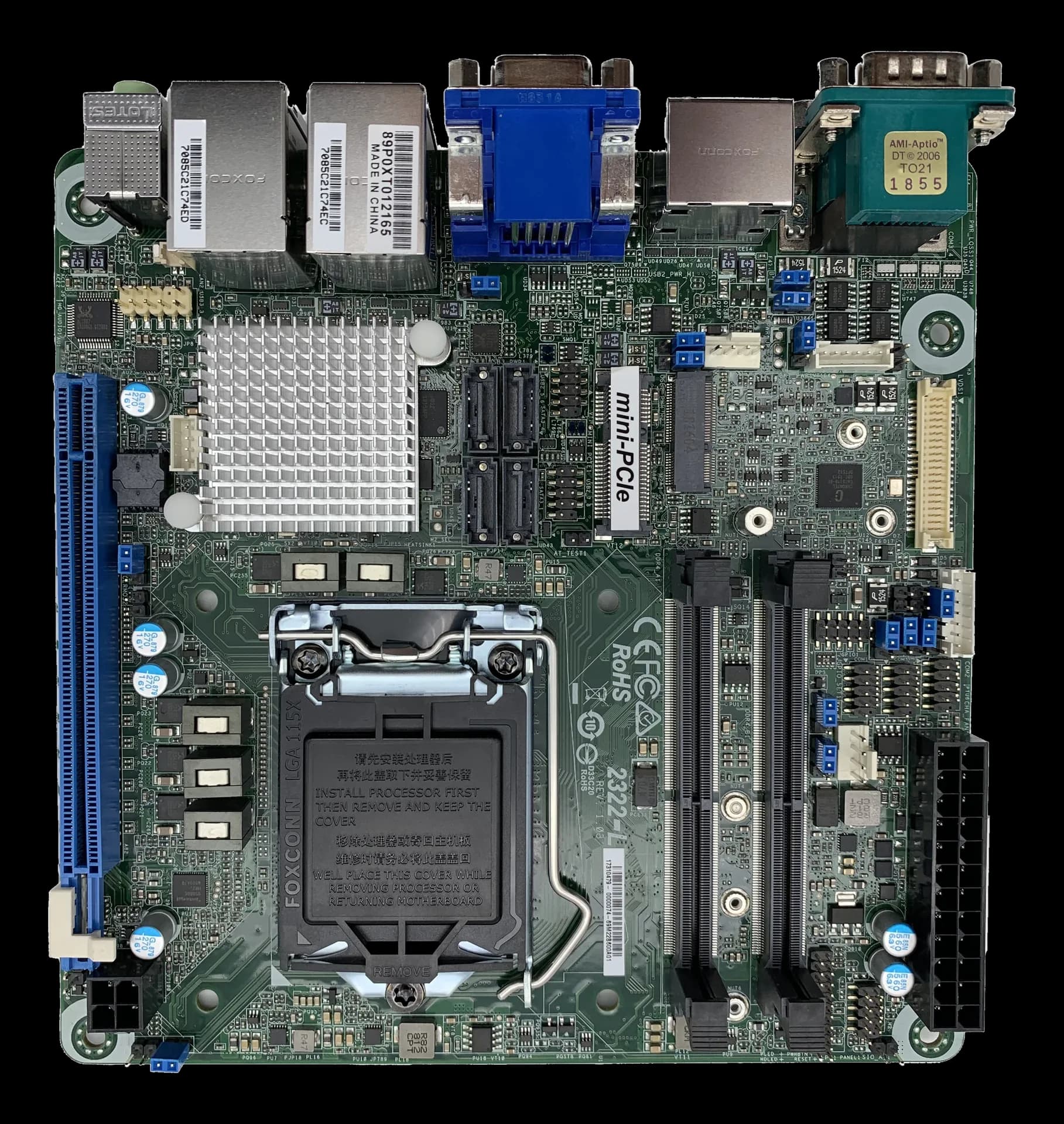

WADE-8211-Q370Motherboard Mini-ITX industriale con chipset Intel Q370 e DDR4 fino a 64 GB
- Produttore
WADE-8211-Q370 è una motherboard Mini-ITX industriale: accetta processori Intel Core i9/i7/i5/i3, Pentium e Celeron di 8ª generazione (Coffee Lake), con TDP fino a 62 W. La memoria DDR4 arriva a 64 GB.
L'espansione offre slot PCIe x16, PCIe x4, PCIe x1, M.2 e Mini-PCIe. Le uscite video comprendono VGA, DisplayPort e LVDS. Lo storage copre SATA. L'esercizio è dichiarato fra 0 e 60 °C.
In sintesi
- Classe CPU: Intel Celeron/Pentium
- Generazione CPU: 8ª gen (Coffee Lake)
- Processore: Intel® Core™ i3-8300 Processor (4 x 3.70 GHz, 8 MB SmartCache, 62 W) Intel® Core™ i3-8300T Processor (4 x 3.20 GHz, 8 MB SmartCache, 25 W) Intel® Core™ i5-8400 Processor (6 x 2.80 GHz / 4.00 GHz, 9 MB SmartCache, 65 W) Intel® Core™ i5-8400T Processor (6 x 1.70 GHz / 3.30 GHz, 9 MB SmartCache, 25 W) Intel® Core™ i5-8500T Processor (6 x 2.10 GHz / 3.50 GHz, 9 MB SmartCache, 25 W) Intel® Core™ i5-8500 Processor (6 x 3.00 GHz / 4.10 GHz, 9 MB SmartCache, 65 W) Intel® Core™ i5-8600 Processor (6 x 3.10 GHz / 4.30 GHz, 9 MB SmartCache, 65 W) Intel® Core™ i5-8600T Processor (6 x 2.30 GHz / 3.70 GHz, 9 MB SmartCache, 25 W) Intel® Core™ i7-8700 Processor (6 x 3.20 GHz / 4.60 GHz, 12 MB SmartCache, 65 W) Intel® Core™ i7-8700T Processor (6 x 2.40 GHz / 4.00 GHz, 12 MB SmartCache, 25 W) Intel® Pentium® Gold G5400 Processor (2 x 3.70 GHz, 4 MB SmartCache, 58 W) Intel® Pentium® Gold G5400T Processor (2 x 3.10 GHz, 4 MB SmartCache, 25 W) Intel® Pentium® Gold G5500 Processor (2 x 3.80 GHz, 4 MB SmartCache, 54 W) Intel® Pentium® Gold G5500T Processor (2 x 3.20 GHz, 4 MB SmartCache, 35 W) Intel® Pentium® Gold G5600 Processor (2 x 3.90 GHz, 4 MB SmartCache, 54 W) Intel® Celeron® G4900 Processor (2 x 3.10 GHz, 2 MB SmartCache, 54 W) Intel® Celeron® G4900T Processor (2 x 2.90 GHz, 2 MB SmartCache, 35 W) Intel® Celeron® G4920 Processor (2 x 3.20 GHz, 2 MB SmartCache, 54 W) Intel® Core™ i3-8100 Processor (4 x 3.60 GHz, 6 MB SmartCache, 65 W) Intel® Core™ i3-8100T Processor (4 x 3.10 GHz, 6 MB SmartCache, 35 W) · Intel® Coffee -S Core™ i Processors
- Watchdog: sì
- TDP CPU: 62–62 W
Specifiche tecniche
| Chipset | Q370 |
|---|---|
| Classe CPU | Intel Celeron/PentiumIntel Core i3/i5/i7/i9 |
| BIOS | AMI UEFI BIOS |
| Generazione CPU | 8ª gen (Coffee Lake) |
| Processore | Intel® Core™ i3-8300 Processor (4 x 3.70 GHz, 8 MB SmartCache, 62 W) Intel® Core™ i3-8300T Processor (4 x 3.20 GHz, 8 MB SmartCache, 25 W) Intel® Core™ i5-8400 Processor (6 x 2.80 GHz / 4.00 GHz, 9 MB SmartCache, 65 W) Intel® Core™ i5-8400T Processor (6 x 1.70 GHz / 3.30 GHz, 9 MB SmartCache, 25 W) Intel® Core™ i5-8500T Processor (6 x 2.10 GHz / 3.50 GHz, 9 MB SmartCache, 25 W) Intel® Core™ i5-8500 Processor (6 x 3.00 GHz / 4.10 GHz, 9 MB SmartCache, 65 W) Intel® Core™ i5-8600 Processor (6 x 3.10 GHz / 4.30 GHz, 9 MB SmartCache, 65 W) Intel® Core™ i5-8600T Processor (6 x 2.30 GHz / 3.70 GHz, 9 MB SmartCache, 25 W) Intel® Core™ i7-8700 Processor (6 x 3.20 GHz / 4.60 GHz, 12 MB SmartCache, 65 W) Intel® Core™ i7-8700T Processor (6 x 2.40 GHz / 4.00 GHz, 12 MB SmartCache, 25 W) Intel® Pentium® Gold G5400 Processor (2 x 3.70 GHz, 4 MB SmartCache, 58 W) Intel® Pentium® Gold G5400T Processor (2 x 3.10 GHz, 4 MB SmartCache, 25 W) Intel® Pentium® Gold G5500 Processor (2 x 3.80 GHz, 4 MB SmartCache, 54 W) Intel® Pentium® Gold G5500T Processor (2 x 3.20 GHz, 4 MB SmartCache, 35 W) Intel® Pentium® Gold G5600 Processor (2 x 3.90 GHz, 4 MB SmartCache, 54 W) Intel® Celeron® G4900 Processor (2 x 3.10 GHz, 2 MB SmartCache, 54 W) Intel® Celeron® G4900T Processor (2 x 2.90 GHz, 2 MB SmartCache, 35 W) Intel® Celeron® G4920 Processor (2 x 3.20 GHz, 2 MB SmartCache, 54 W) Intel® Core™ i3-8100 Processor (4 x 3.60 GHz, 6 MB SmartCache, 65 W) Intel® Core™ i3-8100T Processor (4 x 3.10 GHz, 6 MB SmartCache, 35 W) · Intel® Coffee -S Core™ i Processors |
| Watchdog | sì |
| TDP CPU | 62–62 W |
| Thread CPU | 100–900 |
| Grafica | Intel® Gen 9 Graphics supports DirectX 12, OpenGL 4.6, Video decode HW acceleration support for H.264, H.265, MPEG2, VC-1/WMV9, JPEG, VP8, and VP9 · - Intel® Gen 9 graphic engine supports DirectX 12, OpenGL 4.6 · - Controller: Intel® Gfx Gen 9, UHD 630 graphics - VGA: Supports VGA up to resolution 1920 x 1200 - DP: Supports DP up to resolution 4096 x 2304 - LVDS: Supports LVDS up to resolution 1920 x 1200 |
| Supporto ECC | no |
|---|---|
| RAM massima espandibile | 64–64 GB |
| Tipo RAM | DDR4 |
| Memoria RAM | Up to 64GB DDR4-2133 Non-ECC SDRAM on two pin SO-DIMM sockets · Support up to 64GB DDR4 2400/2666 Non-ECC SDRAM on two SO-DIMM socket · Up to 32 GB in 2 slots DDR4 So-DIMM sockets. Supports dual channel DDR4 2400/2666 MHz SDRAM |
| Storage | Supports four SATAIII ports · 4x SATAIII ports · - Four SATA ports(SATA 6Gb/s) - Supports RAID 0, 1, 5, 10 |
|---|
| Uscite video | Dual channel 2bit LVDS on board, resolution up to 1920 x1200 Dual DP ports on rear I/O, resolution up to 4K (4096x2340@24Hz) One VGA port on rear I/O resolution up to 1920x1200 @60Hz · - DP:Two DP port on rear I/O, resolution up to 4K (4096x2304@60Hz) - VGA:One VGA port on rear I/O resolution up to 1920x1200 @ 60Hz - LVDS:One LVDS connector on board, resolution up to 1920x1200 |
|---|
| Porte USB | 4x USB3.0 on rear I/O 4x USB2.0 on board pin header · - USB Port: 4x USB 3.0 on REAR I/O, 4x USB 2.0 on board header |
|---|---|
| Audio | Realtek AL887 High Definition Audio integrated in Intel SoC Audio Jack on rear I/O with Line-out/ Mic-in · - Audio Interface: Mic-In · Line-Out |
| I/O digitale | One pin-header for GPIO(4bit in & 4bit out) · Super I/O (Embedded Controller) - NCT6116D GPIO - 8-bit configurable controlled by embedded controller · - GPIO connector: 4GPI + 4GPO |
| Porte Ethernet | Intel® I219LM & I210AT Ethernet controller 2x RJ45 connectors on rear I/O |
| Interfacce seriali | 2x RS-232/422/485 ports on REAR I/O 3x RS-232 ports on board pin header · - Five Ports: 2x RS-232/422/485 on REAR I/O & 3x RS-232 on board header |
| Formato modulo | Mini-ITX |
|---|
| Espansione | 1x PCIe x16 1x M.2 Type E socket (2230) for Wireless 1x M.2 Type M socket (2242/2260/2280) for SSD · - 1x PCIe x16 Gen3 - 1x M.2(Key E, 2230) with PCIe x1, CNVI and USB2.0 for Wireless - 1x M.2 (Key M, 2242/2260/2280) with PCIe x4 and SATA3 for SSD · - One mini-PCIe socket - One M.2 (Key E, 2230) with PCIe x1, CNVI and USB2.0 for Wireless - One M.2 (Key M, 2242/2260/2280) with PCIe x4 and SATA3 for SSD |
|---|
| Alimentazione | ATX power input · ATX |
|---|
| Dimensioni | 170 × 170 |
|---|---|
| Altre caratteristiche | Over 100,000 hours at 40°C · System monitor(Voltage, Fan Speed and Temperature) · NCT6116D |
| Temperatura operativa | 0~60 |
|---|---|
| Temperatura di storage | -20–80 °C |
| Sistemi operativi | VxWorksLinuxWindows |
|---|
Dati estratti dalle schede tecniche dei produttori: per la conferma finale fa fede lo spec sheet ufficiale del prodotto.
