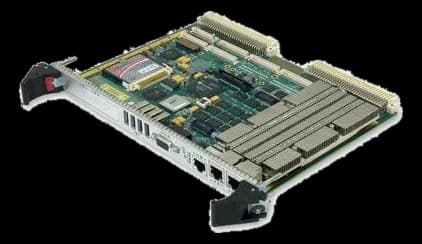

XVB6026U VME Intel single board computer with mezzanine expansion
- Manufacturer
The board joins the Intel architecture to the VME bus, with declared memory up to 8 GB of DDR3 with error correction and a Gigabit Ethernet interface.
When the two on-board PMC sites are not enough, the manufacturer foresees the addition of three more mezzanine positions through the EXP237 expansion board. The declared build is extended temperature, air cooled.
At a glance
- Processor: Intel Core i7 up to 2.53 GHz
- CPU frequency: 2.53 GHz
- CPU class: Intel Core i3/i5/i7/i9
- Memory: 8 GB DDR3 SDRAM with ECC
- ECC support: Yes
Technical specifications
| Processor | Intel Core i7 up to 2.53 GHz |
|---|---|
| CPU frequency | 2.53 GHz |
| CPU class | Intel Core i3/i5/i7/i9 |
| Memory | 8 GB DDR3 SDRAM with ECC |
|---|---|
| ECC support | Yes |
| RAM type | DDR3 |
| Ethernet ports | Gigabit Ethernet |
|---|---|
| Serial interfaces | 2 |
| Board function | CPU / Processor |
|---|---|
| Architecture standard | VME64x |
| Form factor | 6U double Eurocard |
| AMC slot configuration | 2x PMC |
| Bus interface | Tundra Tsi148 |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
