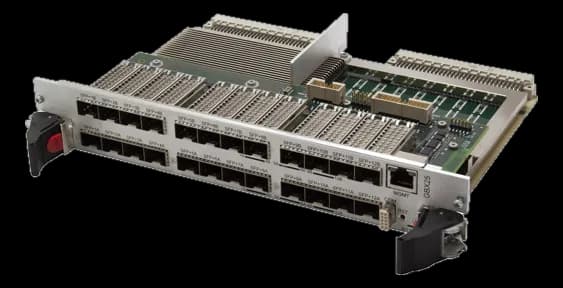

GBX25Fully managed rugged 6U VME Ethernet switch
- Manufacturer
The switch brings the network inside the VME rack: the front ports use SFP and SFP+ cages for fiber links, while the rear ports go through the backplane. Copper 10/100/1000BaseT links and fiber links up to 10GBase-SR and 10GBase-LR are supported.
Switching and routing take place at layer 2 and 3 over IPv4 and IPv6, with management entrusted to the OpenWare software. The foreseen cooling is by convection, with air ruggedization levels declared by the manufacturer.
At a glance
- Board function: Ethernet
- Architecture standard: VME64x
- Form factor: 6U double Eurocard
- Cooling: Air-cooled (VITA class)
- Operating temperature: -40–75 °C
Technical specifications
| Ethernet ports | Up to 40 (24 rear VME ports and 24 front panel ports)(up-to-max) |
|---|---|
| Connectors | SFP(front) |
| Board function | EthernetSwitch / Fabric |
|---|---|
| Architecture standard | VME64x |
| Form factor | 6U double Eurocard |
| Rugged / conformal coating | Convection Cooled, Level 1-3 Air Cooled |
|---|
| Cooling | Air-cooled (VITA class) |
|---|---|
| Operating temperature | -40–75 °C |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
