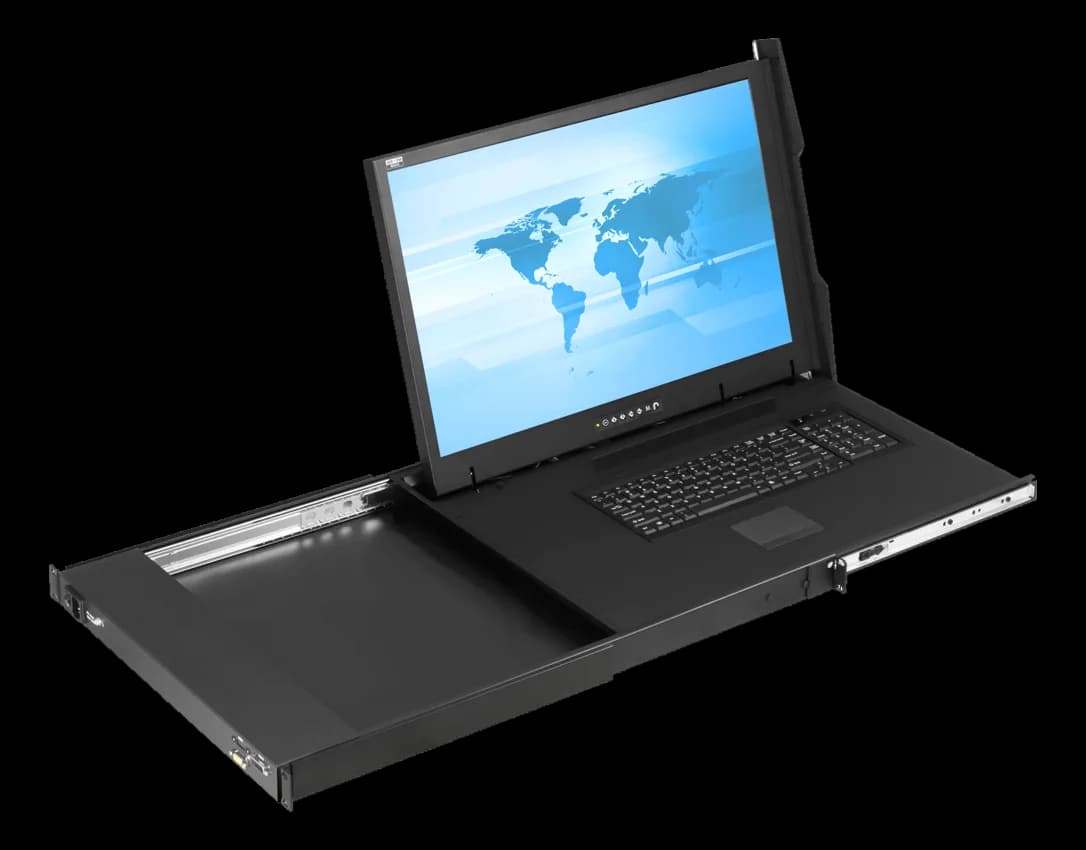

X12424.1″ rack LCD console with local KVM and LED backlight
- Manufacturer
- Configurations
- 31 available configurations
X124 is an LCD console for 19″ rack cabinets and standalone applications, with a 24.1″ display and an integrated local KVM for direct management of the installed equipment.
The LED panel provides 300 cd/m² brightness with a 0.27 mm pixel pitch and a 14 ms response time. The surface combines an anti-glare (AG) treatment and hard-coating with 3H hardness, while the stated MTBF is 30000 h.
The family is available in local KVM or Cat6/remote versions and with 8, 16 or 32 port matrices; example part number X124-1201e_EU.
At a glance
- Operating temperature: 0–55 °C
Technical specifications
| Aspect ratio | 16:10 |
|---|---|
| Viewing angle | 89/89/89/89 |
| Pixel pitch | 0.27 mm |
| Display colors | 16.7 M |
| Active area | 518.4 × 324.0 mm |
| Backlight type | LED |
| Response time | 14 ms |
| Surface hardness | 3H |
| Surface treatment | Anti-glare (AG)Hard-coating |
| Audio | Dual Stereo Speaker2ch Linear PCM ( 32 / 44.1 / 48 KHz )2 x 2W(speaker)SMPTE 299M / 272M-C(SDI) |
|---|---|
| Other I/O | Power, USB, VGA, HDMI, AC Input 100~240V |
| Power consumption | 1 W(console / kvm · off)33 W(console)65 W(console w/ kvm)65 W(with kvm)1 W(single console · off)30 W(with kvm · saving)2 W(single console · saving)2 W(console · saving)30 W(console w/ kvm · saving) |
|---|
| Weight | 15.3 kg16.1 kg22 kg(gross)19.5 kg(gross) |
|---|
| Operating temperature | 0–55 °C |
|---|---|
| Storage temperature | -20–60 °C |
| Operating altitude | 4876.8 m |
| MTBF | 30000 h |
| Certifications | CEWEEE (2012/19/UE)REACHFCCUKCARoHS(3) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| X124-1201e_EU |
| X124-1602e_EU |
| X124-801DPB_EU |
| X124-801DPE_EU |
| X124-801KB_EU |
| X124-801KE_EU |
| X124-802e_EU |
| X124-IP1602e_EU |
| X124-IP802e_EU |
| X124-MU1602e_EU |
| X124-MU1603e_EU |
| X124-MU1604e_EU |
