KVM Switches for 19″ Rack Cabinets
W11919″ rack LCD console with local KVM and multiple video inputs
- Manufacturer
- Configurations
- 34 available configurations

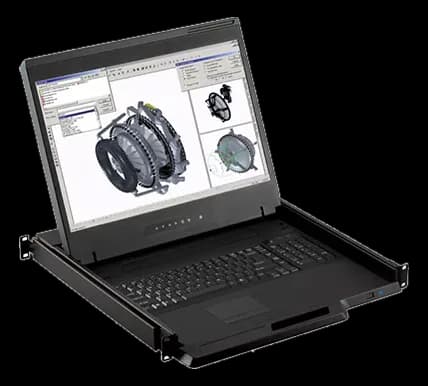

W119 is an LCD console for 19″ rack cabinets with local KVM, usable for direct management of equipment installed in racks or in standalone applications. The 19 inch display in 16:10 format handles several types of video source, including VGA, DVI, S-Video, SDI and Composite BNC.
On the power side, the console accepts an auto-sensing input from 100 to 240VAC at 50/60Hz, with a DC option at 12V, 24V, 48V or 125V. The operating temperature range runs from 0 to 55 °C.
The family comprises versions with 8, 12, 16 or 32 KVM ports; example part number W119-1201e_EU.
At a glance
- Display size: 19 ″
- Video inputs: SDI
- Brightness: Up to 399 standard cd/m²
- Contrast ratio: 1000 : 1
- KVM / console type: Local KVM
Technical specifications
| Display size | 19 ″ |
|---|---|
| Resolution | 1440x900(max) |
| Video inputs | SDIS-VideoVGADVIComposite BNCHDMI(1.4) |
| Brightness | Up to 399 standard cd/m² |
| Contrast ratio | 1000 : 1 |
| Aspect ratio | 16:10 |
| KVM / console type | Local KVM |
|---|---|
| Number of ports | 8321612 |
| Keyboard & pointing device | 2x USB type A(USB-A) |
| USB ports | Front USB hub port for device access |
| AC/DC input | AC+DC |
|---|---|
| Power input | Auto-sensing 100 to 240VAC, 50 / 60Hz · Optional DC power: · 12V / 24V / 48V / 125V |
| Dimensions | 442 × 44 × 460 mm |
|---|
| Operating temperature | 0–55 °C |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| W119-1201e_EU |
| W119-1602e_EU |
| W119-801DPB_EU |
| W119-801DPE_EU |
| W119-801He_EU |
| W119-801KB_EU |
| W119-801KE_EU |
| W119-802e_EU |
| W119-802He_EU |
| W119-IP1602e_EU |
| W119-IP802e_EU |
| W119-IP802He_EU |
