VPX3-XMXM3U VPX GPGPU blade with NVIDIA RTX 5000 / 2000 Ada, SOSA-aligned
- Manufacturer
- Configurations
- 12 available configurations

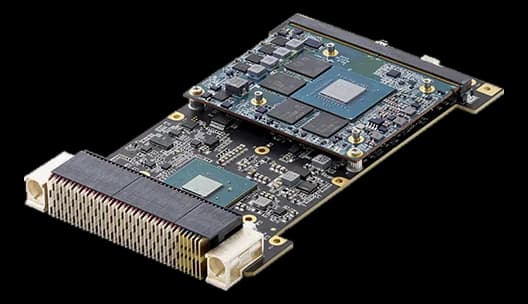

VPX3-XMXM is a 3U VPX carrier board with a single MXM slot: it brings NVIDIA RTX Ada Generation graphics inside rugged chassis, where the GPGPU payload works alongside SBCs and I/O cards on an OpenVPX backplane. Conduction-cooled construction at 1-inch pitch according to VITA 48.2, with conformal coating and ETT.
Its distinguishing trait is data plane flexibility: the PCIe Gen4 lanes pass through a switch and can be reconfigured on request, with SOSA-aligned profiles at depopulated P2B or fully depopulated P2, in addition to the SLT3-PAY-2F2U-14.2.3 payload.
Available in two configurations: VPX3-XMXM/AD5000 with RTX 5000 Ada, 16 GB GDDR6 and 80 W TGP (115 W on request); VPX3-XMXM/AD2000 with RTX 2000 Ada, 8 GB GDDR6 and 60 W TGP.
At a glance
- Up to 9728 CUDA cores (RTX 5000 Ada)
- Native PCIe Gen4 interface
- Supports VITA 46.11 Tier 1 and Tier 2
- 12V input (VS1/VS2)
- Conduction-cooled via wedge lock
Technical specifications
| Memory | 16GB GDDR6 memory(variant VPX3-XMXM/AD5000)8GB GDDR6 memory(variant VPX3-XMXM/AD2000) |
|---|
| Graphics | NVIDIA® RTXTM 5000 Ada Generation or NVIDIA® RTX™ 2000 Ada Generation embedded graphics (with a roadmap to Blackwell architecture)NVIDIA RTX2000 Ada(variant VPX3-XMXM/AD2000)NVIDIA RTX5000 Ada(variant VPX3-XMXM/AD5000) |
|---|---|
| CUDA cores | 97283072(variant VPX3-XMXM/AD2000) |
| GPU board power | 60W(variant VPX3-XMXM/AD2000)80W (115W configurable by request)(variant VPX3-XMXM/AD5000) |
| Video outputs | 1× DisplayPort 1.4a(optional)1× DisplayPort 1.4a output to P2B(optional) |
|---|
| Serial interfaces | One RS-232 from SBC to P2B via PCIe switch(optional) |
|---|---|
| Other I/O | Additional ports from SBC for expansion (SKU option): 2× USB3.2 Gen1x1, 1× USB2.0, and 1× RS-232 |
| Board function | GPU / Graphics |
|---|---|
| Form factor | 3U Eurocard |
| Architecture standard | VITA 48 REDIVPX (VITA 46)SOSAOpenVPX VITA 65 |
| OpenVPX profile | SLT3-PAY-2F2U-14.2.3 (PCIe Upstream Port: P1A) |
| Backplane planes | One PCIe Gen4 x8 to P2A (SKU option), configurable as two PCIe x4 by requestOne PCIe Gen4 x8 to P1A, configurable as two PCIe x4 by request · Two of PCIe Gen4 x8 (P1B + P2A) can be configured to one PCIe x16 by request · PCIe lanes configurable by PCIe switch |
| Bus interface | Native PCIe Gen4 interfacePCIe Gen4 x16(variant VPX3-XMXM/AD5000)PCIe Gen4 x8(variant VPX3-XMXM/AD2000) |
| IPMI management | Supports IPMI V1.5 mandatory command list |
| Expansion | 2x USB3.2 Gen1x1, 1x USB2.0, and 1x RS-232(optional) |
|---|
| Power input | 12V (VS1/VS2) |
|---|
| Operating altitude | 18288 m |
|---|---|
| Cooling | Conduction-cooled |
| Operating temperature | -40–85 °C |
| Storage temperature | -55–100 °C |
| Certifications | CEEN 55032EN 55035FCC |
|---|
| Operating systems | WindowsLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
Columns show only what changes between configurations: the rest of the sheet applies to the whole family.
| Configuration (PN) | Memory | Graphics | Bus interface |
|---|---|---|---|
| VPX3-XMXM/AD2000, COMM | 8GB GDDR6 memory | NVIDIA RTX2000 Ada | PCIe Gen4 x8 |
| VPX3-XMXM/AD2000, NON-COMM | 8GB GDDR6 memory | NVIDIA RTX2000 Ada | PCIe Gen4 x8 |
| VPX3-XMXM/AD2000, W/O P2, COMM | 8GB GDDR6 memory | NVIDIA RTX2000 Ada | PCIe Gen4 x8 |
| VPX3-XMXM/AD2000, W/O P2, NON-COMM | 8GB GDDR6 memory | NVIDIA RTX2000 Ada | PCIe Gen4 x8 |
| VPX3-XMXM/AD2000, W/O P2B, NON-COMM | 8GB GDDR6 memory | NVIDIA RTX2000 Ada | PCIe Gen4 x8 |
| VPX3-XMXM/AD2000, W/O, P2B, COMM | 8GB GDDR6 memory | NVIDIA RTX2000 Ada | PCIe Gen4 x8 |
| VPX3-XMXM/AD5000, COMM | 16GB GDDR6 memory | NVIDIA RTX5000 Ada | PCIe Gen4 x16 |
| VPX3-XMXM/AD5000, NON-COMM | 16GB GDDR6 memory | NVIDIA RTX5000 Ada | PCIe Gen4 x16 |
| VPX3-XMXM/AD5000, W/O P2, COMM | 16GB GDDR6 memory | NVIDIA RTX5000 Ada | PCIe Gen4 x16 |
| VPX3-XMXM/AD5000, W/O P2, NON-COMM | 16GB GDDR6 memory | NVIDIA RTX5000 Ada | PCIe Gen4 x16 |
| VPX3-XMXM/AD5000, W/O P2B, COMM | 16GB GDDR6 memory | NVIDIA RTX5000 Ada | PCIe Gen4 x16 |
| VPX3-XMXM/AD5000, W/O P2B, NON-COMM | 16GB GDDR6 memory | NVIDIA RTX5000 Ada | PCIe Gen4 x16 |
