67G6OpenVPX VITA 65 board with ARM Cortex-A53 and DDR4 ECC
- Manufacturer

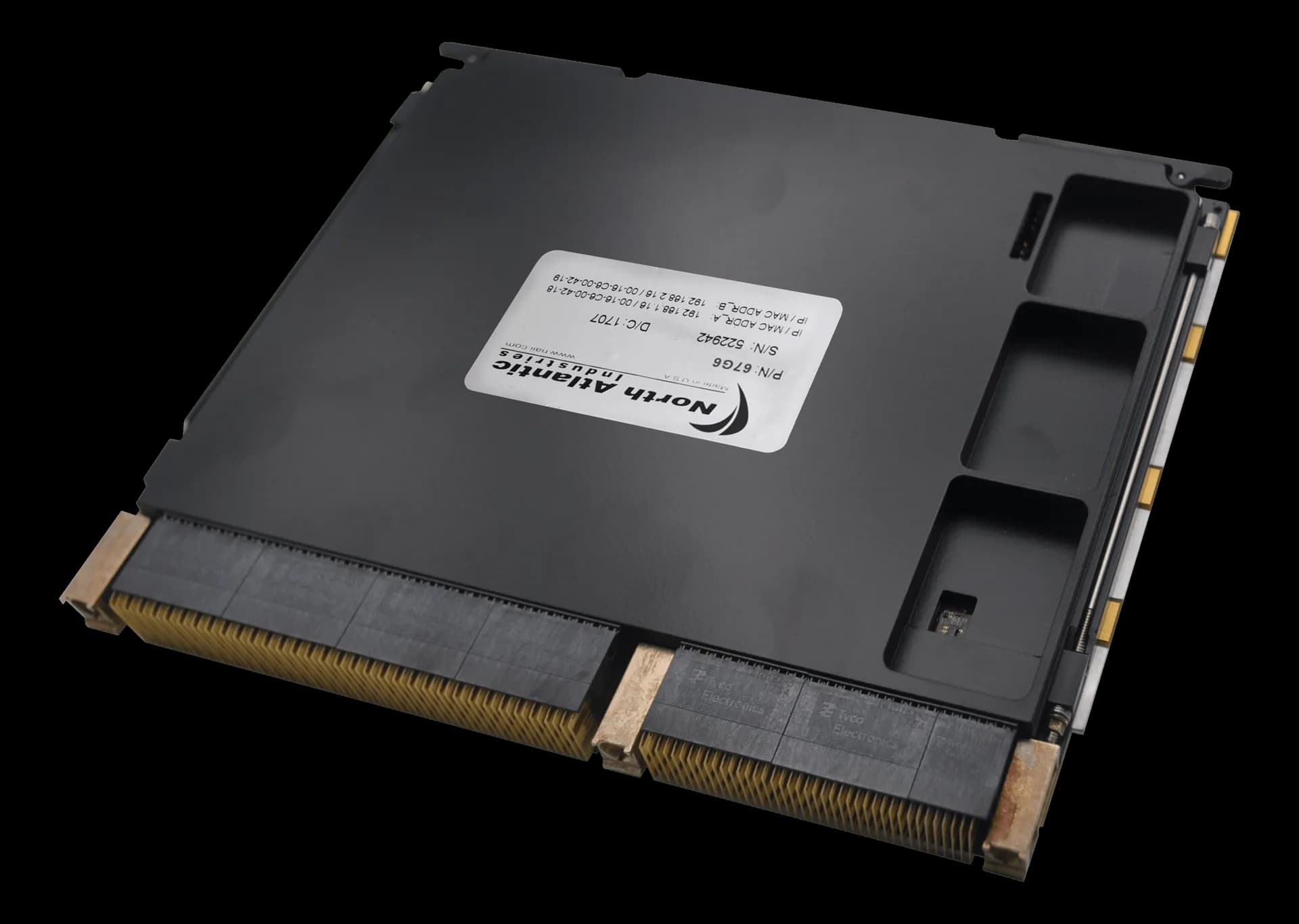

The 67G6 is an NAI board compliant with the OpenVPX VITA 65 profile, meant for modular systems where computing, I/O and communication share the same backplane.
Control is entrusted to an ARM Cortex-A53 processor with DDR4 memory with ECC; the on-board software can be Linux or VxWorks.
The board weighs 0.454 kg and declares a storage temperature from -55 to 105 °C.
At a glance
- Processor: ARM® Cortex®-A53 processor
- FPGA / processing: 1 - Xilinx Zynq UltraScale+
- Watchdog: Yes
- Memory: NVMRO
- ECC support: Yes
Technical specifications
| Processor | ARM® Cortex®-A53 processor |
|---|---|
| FPGA / processing | 1 - Xilinx Zynq UltraScale+ |
| Watchdog | Yes |
| Memory | NVMRO2 GB DDR4 + ECC |
|---|---|
| ECC support | Yes |
| RAM type | DDR4 |
| Storage | 32 GB SATA |
|---|
| Ethernet ports | 2x 10/100/1000 Base-T or 1000Base-KX EthernetDual Gig-E port option(s) are available and defined (See Part Number Designation section)(optional) |
|---|---|
| Connectors | N-pin connector(male · front) |
| Other I/O | J1 - J6 pin-23 is System (SYS) GND (referenced to card power/system ground). |
| Board function | Analog and digital I/OAvionics (ARINC / MIL-STD-1553) |
|---|---|
| Form factor | 6U double Eurocard |
| Architecture standard | VPX (VITA 46)OpenVPX VITA 65 |
| OpenVPX profile | SLT6-PER-4U-10.3.3(slot)MOD6-PER-4U-12.3.3-2(module) |
| Backplane planes | four PCIe ver 2.0 Ultra-Thin pipes (2 x1 end point, 2 x1 direct to module)2x 10/100/1000Base-T, or 2x 1000Base-KX(control)2 x1 PCIe (end point only) 2 x1 PCIe (direct to module)(fabric)2 x1 PCIe (end point only), or 2 x1 PCIe direct to module(data) |
| Bus interface | PCIe |
| Dimensions | 233.7 × 160 mm |
|---|---|
| Weight | 0.454 kg |
| Rugged / conformal coating | Commercial: 0º C to 70º C, Rugged: -40º C to 85º C |
| Operating temperature | 0–55 °C |
|---|---|
| Storage temperature | -55–105 °C |
| Operating systems | VxWorksLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
