ComEth4082e3U VPX Layer 2+/3 managed Ethernet switch up to 28 ports
- Manufacturer

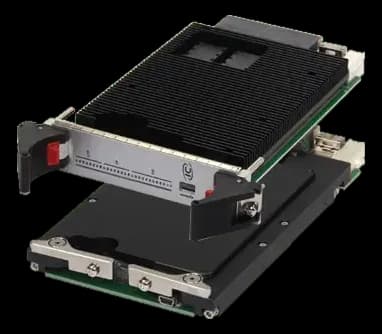

ComEth4082e is a managed Ethernet switch in 3U VPX form factor, compliant with VITA 46 and intended for open architecture systems where the data plane goes through the backplane.
Switching is Layer 2+/3 and reaches up to 28 ports, with 10/100/1000BASE-T twisted pair links and copper or optical links towards the backplane.
The declared storage temperature is -45~100 °C.
At a glance
- Board function: Switch / Fabric
- Form factor: 3U Eurocard
- Architecture standard: VPX (VITA 46)
- Backplane planes: 8 * 1GBase-KX/10GBASE-KR or 2 * 10GBASE-KX4/40GBASE-KR4 [Ethernet over copper backplane]
- Operating temperature: 0–55 °C
Technical specifications
| Ethernet ports | 8 * 10/100/1000BASE-T [Ethernet on twisted pairs]Up to 28 ports(up-to-max) |
|---|
| Board function | Switch / Fabric |
|---|---|
| Form factor | 3U Eurocard |
| Architecture standard | VPX (VITA 46)OpenVPX VITA 65 |
| OpenVPX profile | SLT3-SWH-8U8T1J(slot) |
| Backplane planes | 8 * 1GBase-KX/10GBASE-KR or 2 * 10GBASE-KX4/40GBASE-KR4 [Ethernet over copper backplane] |
| Rugged / conformal coating | conformal coating(optional) |
|---|
| Operating temperature | 0–55 °C |
|---|---|
| Storage temperature | -45–100 °C-45–85 °C(Extended)-45–85 °C(Standard) |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
