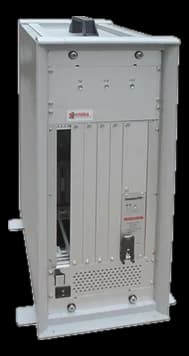

VMT4400AVME tower with a 3.5″ drive bay for 6U boards, up to 5 slots

Manufacturer

VMT4400A is a VME microrack for 6U boards in a portable enclosure with a front drive bay: the aluminum alloy frame measures 267.9 × 576 × 362.6 mm and has a carrying handle and support feet.

The Elma backplane reaches 5 VME or VME64x slots with automatic daisy-chains, power comes from 3U 8HP modules at 100-240 VAC for 250 W or 36-72 V and 18-36 V DC and the front hosts one 3.5″ drive; air leaves at the rear through an extraction fan and the declared envelope is 0 to +55 °C, IP20, shock 15g/11ms and vibration 1.5g between 5 and 200 Hz. GOMA configures it for the application.

At a glance

Number of slots: 3 slot
Expansion: Backplane Elma con daisy-chain automatiche e terminazioni passive per schede 6U · Backplane VME monolitico 3-5 slot · Backplane VME64x con P0, 4-5 slot · BackplaneVME64x senza P0, 4-5 slot
Power input: Singolo o Doppio Alimentatore Modulare con accesso dal fronte · Alimentatore modulare 3U 8HP power input: 100-240VAC, 250W · Alimentatore modulare 3U 8HP power input: 36-72VDC, min 150W · Alimentatore modulare 3U 8HP power input: 18-36VDC, 250W V
Mounting: Desktop / Stand

Request information Full specifications ↓

Technical specifications

Number of slots	3 slot5 slot4 slot
Expansion	Backplane Elma con daisy-chain automatiche e terminazioni passive per schede 6U · Backplane VME monolitico 3-5 slot · Backplane VME64x con P0, 4-5 slot · BackplaneVME64x senza P0, 4-5 slot

Power input	Singolo o Doppio Alimentatore Modulare con accesso dal fronte · Alimentatore modulare 3U 8HP power input: 100-240VAC, 250W · Alimentatore modulare 3U 8HP power input: 36-72VDC, min 150W · Alimentatore modulare 3U 8HP power input: 18-36VDC, 250W V
