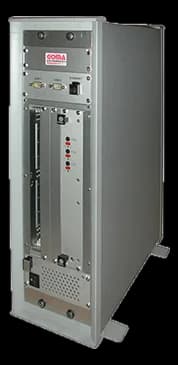

VMT3400ASlim VME tower for 6U boards, up to 3 slots
- Manufacturer
VMT3400A is the slim version of the VME microrack in a portable enclosure for 6U boards: the aluminum alloy frame measures 223.4 × 576 × 371.6 mm and has a carrying handle and support feet.
The Elma backplane reaches 3 VME or VME64x slots with automatic daisy-chains, power comes from 6U 8HP modules at 100-240 VAC or 36-72 V DC and the front hosts two 3.5″ drives; air leaves at the rear through an extraction fan and the declared envelope is 0 to +55 °C, IP20, shock 15g/11ms and vibration 1.5g between 5 and 200 Hz. GOMA configures it for the application.
At a glance
- Number of slots: 2 slot
- Expansion: Backplane Elma per schede 6U · Backplane VME monolitico 2-3 slot
- Power input: Alimentatore Kniel · Alimentatore modulare 6U 8HP power input: 100-240VAC, min 400W · Alimentatore modulare 6U 8HP power input: 36-72VDC, min 400W V
- Mounting: Desktop / Stand
Technical specifications
| Number of slots | 2 slot3 slot |
|---|---|
| Expansion | Backplane Elma per schede 6U · Backplane VME monolitico 2-3 slot |
| Power input | Alimentatore Kniel · Alimentatore modulare 6U 8HP power input: 100-240VAC, min 400W · Alimentatore modulare 6U 8HP power input: 36-72VDC, min 400W V |
|---|
| Mounting | Desktop / Stand |
|---|---|
| Dimensions | 223.4 x 576 x 400 mm |
| Chassis material | Lega di Alluminio |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
