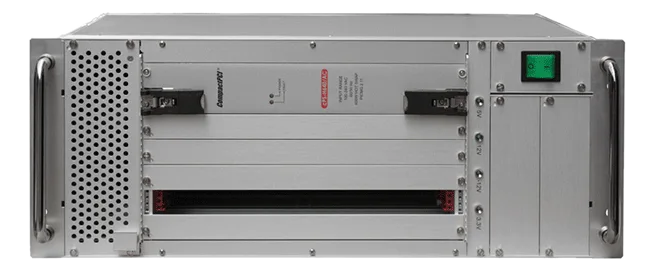

VME4283B4U VME microrack with a single power supply, up to 5 slots
- Manufacturer
VME4283B is a 4U microrack for 6U VME boards, intended for 19″ rack cabinets and for fitting into an IntermeZo laboratory enclosure: aluminum alloy frame of 84TE with 282.9 mm depth, with telescopic slides on request.
The Elma backplane reaches 5 VME, VME64x or VXS slots, with automatic daisy-chains and provision for a rear transition module; the power supply is a single 6U 8HP module and accepts 100-240 VAC or 36-72 V DC, the 6U modules enter horizontally and the declared envelope is 0 to +55 °C, IP20, shock 15g/11ms and vibration 1.5g between 5 and 200 Hz. GOMA configures it for the application.
At a glance
- Number of slots: 5 slot
- Expansion: Backplane Elma con daisy-chain automatiche e terminazioni passive per schede 6U · Backplane VME monolitico 3-5 slot · Backplane VME64x con o senza P0, 4-5 slot · Backplane VXS 5 slot
- Power input: Alimentatore modulare 6U 8HP power input: 100-240VAC, min 400W · Alimentatore modulare 6U 8HP power input: 36-72VDC, min 400W V
- Mounting: Rack Mount
Technical specifications
| Number of slots | 5 slot4 slot3 slot |
|---|---|
| Expansion | Backplane Elma con daisy-chain automatiche e terminazioni passive per schede 6U · Backplane VME monolitico 3-5 slot · Backplane VME64x con o senza P0, 4-5 slot · Backplane VXS 5 slot |
| Power input | Alimentatore modulare 6U 8HP power input: 100-240VAC, min 400W · Alimentatore modulare 6U 8HP power input: 36-72VDC, min 400W V |
|---|
| Rack units | 4 U |
|---|---|
| Mounting | Rack Mount |
| Dimensions | 4U 84TE 282.9 mm |
| Chassis material | Lega di Alluminio |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
