KVM Switches for 19″ Rack Cabinets
RKP2417K17.3" 16:9 rack LCD console with 8-port local KVM
- Manufacturer
- Configurations
- 1 available configurations

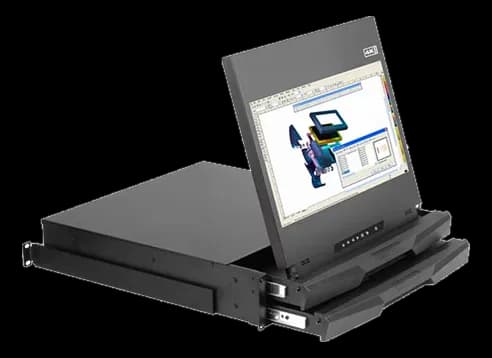

RKP2417K is an LCD console for mounting in 19″ rack cabinets with an integrated local KVM, intended for local management of several servers or devices from a single position. The 17.3" display in 16:9 format and the 8-port switch allow control of up to eight sources.
The video inputs include DisplayPort and SDI. Power is auto-sensing from 100 to 240 VAC (50/60 Hz), with a DC option at 12 V, 24 V, 48 V or 125 V, and operation is specified in the 0~55 °C range.
At a glance
- Display size: 17.3 ″
- Video inputs: SDI
- Brightness: Up to 399 standard cd/m²
- Contrast ratio: 1000 : 1
- Touch points: Resistive 1-pt
Technical specifications
| Display size | 17.3 ″ |
|---|---|
| Resolution | 3840x2160 4K(max) |
| Video inputs | SDIDisplayPortHDMI(2.0) |
| Touchscreen | Resistive(Resistive 1-pt · alternative)PCAP(Projected Capacitive 10-pt · alternative) |
| Brightness | Up to 399 standard cd/m² |
| Contrast ratio | 1000 : 1 |
| Aspect ratio | 16:9 |
| Touch points | Resistive 1-ptProjected Capacitive 10-pt(pcap) |
| KVM / console type | Local KVM |
|---|---|
| Number of ports | 8 |
| Keyboard & pointing device | USB type B |
| AC/DC input | AC+DC |
|---|---|
| Power input | Auto-sensing 100 to 240VAC, 50 / 60Hz · Optional DC power: · 12V / 24V / 48V / 125V |
| Dimensions | 442 × 88 × 480 mm |
|---|
| Operating temperature | 0–55 °C |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| RKP2417Ke_EU |
