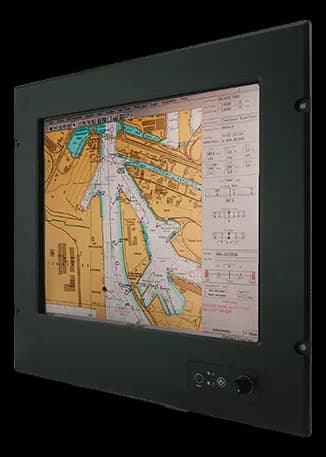

R15ID3S-MRM215" fanless panel PC with IP66 rating and DNV / IEC 60945 certification
- Manufacturer
R15ID3S-MRM2 is an industrial panel PC with a 15" display and an aluminum and metal chassis, suited to panel or VESA installations in harsh environments. DNV / IEC 60945 certification makes it usable in maritime contexts and in areas subject to high humidity (5~95 %).
Fanless construction removes the fans, while the front IP66 rating protects against dust and water jets. The wide-range 9~36 V DC input allows integration in plants with unregulated power, with a declared consumption of 40 W.
At a glance
- CPU class: Intel Atom
- CPU generation: Cedar Trail
- Processor: Intel Atom N2600 1.6GHz
- CPU frequency: 1.6 GHz
- Memory: 4GB GB
Technical specifications
| CPU class | Intel Atom |
|---|---|
| CPU generation | Cedar Trail |
| Processor | Intel Atom N2600 1.6GHz |
| Chipset | NM10 |
| CPU frequency | 1.6 GHz |
| Memory | 4GB GB |
|---|
| Storage | 128GB (Default) up to 512GB (Optional)up to 512GB(optional) |
|---|
| Display size | 15 ″ |
|---|---|
| Touchscreen | Resistive(default) |
| Brightness | Up to 399 standard cd/m² |
| Resolution | 1024x768 XGA |
| Contrast ratio | 2000:1 |
| Viewing angle | 88,88,88,88 |
| Active area | 304.1 × 228.1 mm |
| Video outputs | 1× VGA |
| OSD controls | 1 x Power Button, 1 x Reset Button, 1 x The Dimming Knob |
| Ethernet ports | BCM57780A1KMLG2× RJ45, 10/100/1000 Mbps |
|---|---|
| USB ports | 2× USB 2.0 |
| Serial interfaces | 2× RS-422/485, isolate1× RS-232/422/4852 x RS232 or |
| Other I/O | 1 x Power Button · 1 x Reset Button |
| AC/DC input | DC |
|---|---|
| Power input | 9–36 V |
| Power consumption | 40 W |
| Mounting | Panel MountVESA Mount |
|---|---|
| Dimensions | 412 × 345 × 71.7 mm |
| Cutout dimensions | 338 × 288 mm |
| Weight | 6.5 kg |
| Chassis material | alluminio, metallo |
| IP rating | Front IP66 |
|---|---|
| Cooling | Fanless |
| Certifications | FCCCEDNV / IEC 60945 |
|---|
| Operating systems | Windows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
