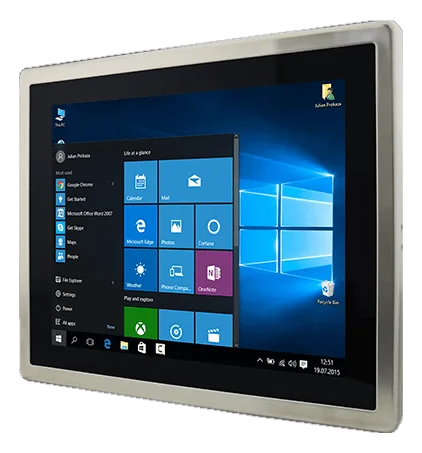

R15ID3S-65EX15" fanless panel PC for ATEX hazardous areas with resistive touch and IP65 rating
- Manufacturer
R15ID3S-65EX is an industrial panel PC with a 15" display and a resistive touchscreen, intended for process plants, oil & gas and classified environments where compliance for hazardous areas is required. The stainless steel chassis and the IP65 protection rating make it suitable for contexts with dust and water jets. It supports both Linux and Windows.
The ATEX/C1D2 and IECEx certifications qualify it for use in areas at risk of explosion. Fanless operation over the extended -20~60 °C range, together with the optical bonding display and a contrast ratio of 2000, supports continuous use in harsh ambient conditions.
At a glance
- CPU class: Intel Atom
- CPU generation: Cedar Trail
- Processor: Intel Atom N2600 1.6GHz
- CPU frequency: 1.6 GHz
- RAM type: DDR3L
Technical specifications
| CPU class | Intel Atom |
|---|---|
| CPU generation | Cedar Trail |
| Processor | Intel Atom N2600 1.6GHz |
| Chipset | NM10 |
| CPU frequency | 1.6 GHz |
| Memory | 4GB GB(DDR3L · 1600 MHz) |
|---|---|
| RAM type | DDR3L |
| Storage | 1× mSATA SSD 128GB (Default)mSATA SSD up to 512GB(optional) |
|---|
| Display size | 15 ″ |
|---|---|
| Touchscreen | Resistive |
| Brightness | 400-599 high cd/m²(default)1000+ sunlight cd/m²(optional) |
| Resolution | 1024x768 XGA |
| Contrast ratio | 2000:1 |
| Viewing angle | 88,88,88,88 |
| Active area | 304.1 × 228.1 mm |
| OSD controls | Button 1 x Power Button 1 x Reset Button |
| Optical bonding | Yes |
| Ethernet ports | BCM57780A1KMLG1× GbE (M12) |
|---|---|
| USB ports | 2× USB 2.01x M12 type connector for |
| Serial interfaces | 1× RS-232/422/485 (M12, default RS-232) |
| Other I/O | 1 x Power Button · 1 x Reset Button |
| Expansion | 1× mPCIe (per SSD SATA III), 1× mPCIe (per modulo Wi-Fi)(Mini-PCIe) |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 9–36 V |
| Mounting | VESA Mount |
|---|---|
| Dimensions | 396 × 310 × 49 mm |
| Cutout dimensions | 365 × 270 mm |
| Weight | 5.7 kg |
| Chassis material | acciaio inox |
| IP rating | IP65 |
|---|---|
| Operating temperature | -20–60 °C |
| Cooling | Fanless |
| Storage temperature | -30–70 °C |
| Certifications | CEULFCCATEX/C1D2IECEx ex |
|---|
| Operating systems | WindowsLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
