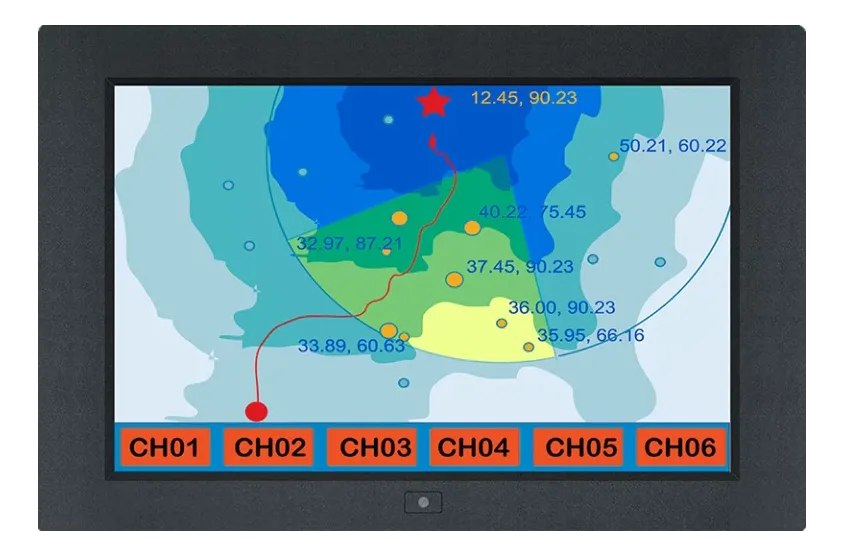

OP-W19Austin Hughes open frame industrial monitor with a 5 ms response time
- Manufacturer
- Configurations
- 11 available configurations
OP-W19 is an Austin Hughes open frame industrial monitor for flush integration into control panels, consoles and operator stations: fixing is left to the host structure and only the panel stays in view. The Dark aluminium frame eases its insertion into existing installations.
The LED-backlit panel has an Anti-glare (AG) treated surface; operation covers the 0~55 °C range with altitude up to 4876.8 m.
The OP-W19 family comprises several configurations on the same base; an example part number is OP-W19/AV4.
At a glance
- Display size: 19 ″
- Resolution: 1440x900
- Brightness: Up to 399 standard cd/m²
- Video inputs: Composite BNC
- AC/DC input: AC
Technical data
Finishes
Standard colours. Other RAL finishes on request from our engineering team.
- RAL 9005Jet black
Technical specifications
| Display size | 19 ″ |
|---|---|
| Resolution | 1440x900 |
| Brightness | Up to 399 standard cd/m² |
| Video inputs | Composite BNCDVIVGAHDMI(1.4) |
| Aspect ratio | 16:10 |
| Contrast ratio | 1000 : 1(typ) |
| Backlight type | LED |
| Response time | 5 ms |
| Viewing angle | 85/85/80/80 |
| Pixel pitch | 0.2835 mm |
| Display colors | 16.7 M, 8-bit |
| Active area | 408.24 × 255.15 mm |
| Surface treatment | Anti-glare (AG) |
| Surface hardness | 3H |
| Audio | 3.5mm stereo jack2W x 2(speaker)30kΩ / 750mV(input)30kΩ / 2.8V(output) |
|---|
| AC/DC input | AC |
|---|---|
| Power input | 100–240 V |
| Power consumption | 20 W2 W(saving)1 W(off) |
| Mounting | Universal MountVESA Mount(100x100) |
|---|---|
| Dimensions | 505.5 × 335.1 × 59.6 mm |
| Weight | 5.5 kg8.4 kg(gross) |
| Chassis material | alluminio |
| IP rating | None / open frame |
|---|---|
| Operating temperature | 0–55 °C |
| Operating altitude | 4876.8 m |
| MTBF | 30000 h |
| Certifications | WEEE (2012/19/UE)UKCAFCCCEREACHRoHS(3) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| OP-W19/DC12 |
| OP-W19/DC125 |
| OP-W19/DC24 |
| OP-W19/DC48 |
| OP-W19/DV4.4 |
| OP-W19/DV4.4/DC12 |
| OP-W19/DV4.4/DC125 |
| OP-W19/DV4.4/DC24 |
| OP-W19/DV4.4/DC48 |
| OP-W19/DV4.4/TRB |
| OP-W19/TRB |
