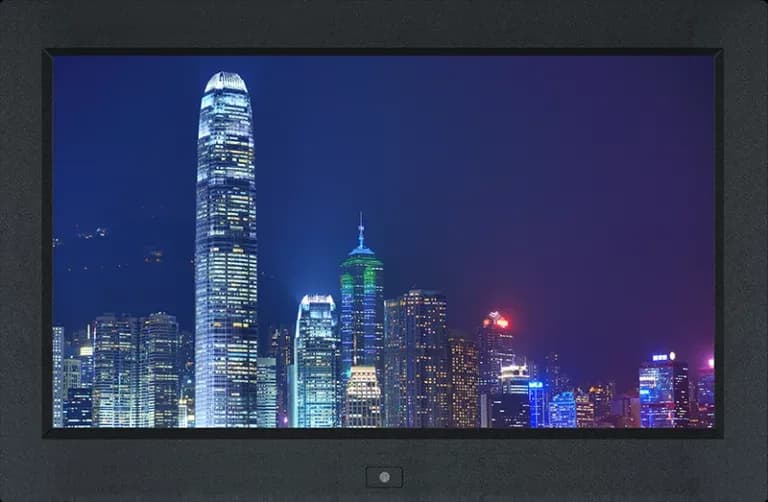

OP-K15Austin Hughes open frame industrial monitor with anti-glare surface
- Manufacturer
- Configurations
- 6 available configurations
OP-K15 is an Austin Hughes open frame industrial monitor for flush integration into control panels, consoles and operator stations: fixing is left to the host structure and only the panel stays in view. The Dark aluminium frame eases its insertion into existing installations.
On the environmental side, operation covers the 0~55 °C range, with an MTBF of 20000 h and altitude up to 4876.8 m.
The OP-K15 family comprises several configurations on the same base; an example part number is OP-K15/DC12.
At a glance
- Display size: 15.6 ″
- Resolution: 3840x2160 4K
- AC/DC input: AC
- Power input: 100–240 V
- Power consumption: 30 W
Technical data
Finishes
Standard colours. Other RAL finishes on request from our engineering team.
- RAL 9005Jet black
Technical specifications
| Display size | 15.6 ″ |
|---|---|
| Resolution | 3840x2160 4K |
| Brightness | Up to 399 standard cd/m²(typ) |
| Video inputs | DisplayPort(1.2)HDMI(2.0)HDMI(1.4) |
| Aspect ratio | 16:9 |
| Contrast ratio | 800:1(typ) |
| Backlight type | LED |
| Response time | 30 ms |
| Viewing angle | 89/89/89/89 |
| Pixel pitch | 0.0897 mm |
| Display colors | 16.7 M, 8-bit |
| Active area | 344.448 × 193.752 mm |
| Surface treatment | Anti-glare (AG) |
| Surface hardness | 3H |
| Audio | 3.5mm stereo jack2W x 2(speaker) |
|---|
| AC/DC input | AC |
|---|---|
| Power input | 100–240 V |
| Power consumption | 30 W2 W(saving)1 W(off) |
| Mounting | Universal MountVESA Mount(100x100) |
|---|---|
| Weight | 3.5 kg6.1 kg(gross) |
| Chassis material | alluminio |
| IP rating | None / open frame |
|---|---|
| Operating temperature | 0–55 °C |
| Storage temperature | -20–60 °C |
| Operating altitude | 4876.8 m |
| MTBF | 20000 h |
| Certifications | CEREACHWEEE (2012/19/UE)UKCAFCCRoHS(3) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| OP-K15/DC12 |
| OP-K15/DC125 |
| OP-K15/DC24 |
| OP-K15/DC48 |
| OP-K15/TPC10 |
| OP-K15/TRB |
