Portable & Transportable Industrial Servers and Workstations

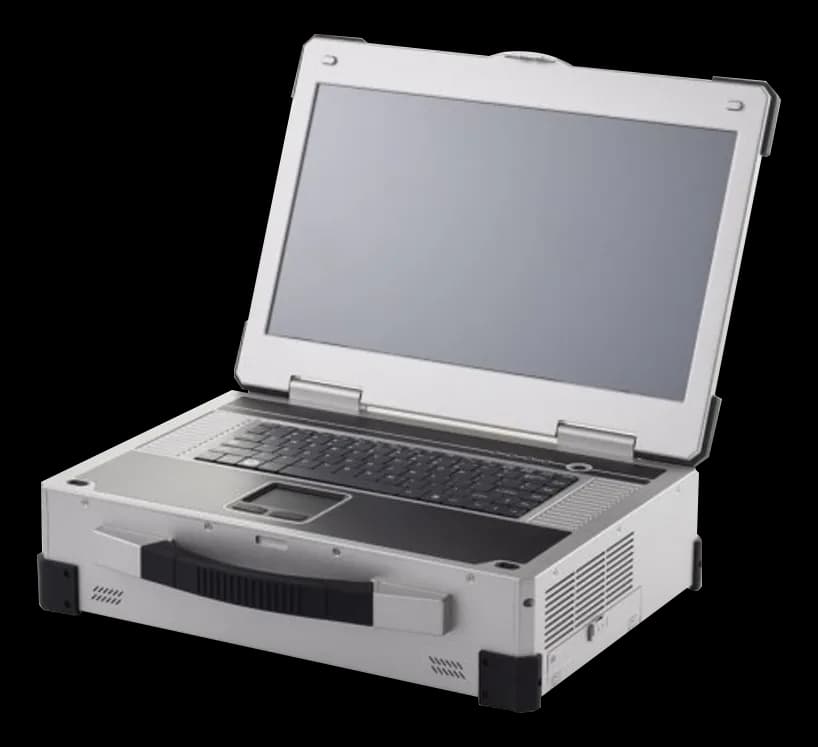

NotePAC ProIndustrial portable workstation in the Acme Portable NotePAC line
- Manufacturer
NotePAC Pro is a portable workstation in the Acme Portable range, a brand specialized in transportable computers for industrial use. The unit brings together in a single body everything the work position requires, so as to pass from transport to operation without additional setup.
Like the other machines in the NotePAC family it is meant for situations where the station follows the operator: off-site testing, maintenance at plants, work with an operating base that changes frequently.
At a glance
- Processor: INTEL® XEON® D-2183IT
- CPU class: Intel Xeon
- Memory: 16GB DDR4 RAM, 2400 · UPGRADABLE TO 32GB+
- RAM type: DDR4
- Maximum RAM: 32– GB
Technical specifications
| Processor | INTEL® XEON® D-2183IT |
|---|---|
| Graphics | NVIDIA Quadro P4000 |
| CPU class | Intel Xeon |
| Memory | 16GB DDR4 RAM, 2400 · UPGRADABLE TO 32GB+ |
|---|---|
| RAM type | DDR4 |
| Maximum RAM | 32– GB |
| Storage | 512GB OS DRIVE · 1TB DATA DRIVE (TOTAL OF 4 REMOVABLE HARD DRIVE CAGES) |
|---|
| Number of displays | 1 |
|---|---|
| Display size | 17.3 |
| Resolution | 1920x1080 FHD3840x2160 4K(optional) |
| Ethernet ports | QUAD LAN WITH INTEL® ETHERNET CONTROLLER I350-AM4 · DUAL LAN WITH 10G SFP+ LAN VIA SOC · DUAL LAN WITH 10GBASE-T |
|---|---|
| Keyboard & pointing device | Backlit keyboard, available in a variety of languages |
| Other I/O | CAC reader |
| Expansion | 1× PCIe x8 slot2× 3/4 length PCIe slots (x16, x8) for add-in graphics, RAID, Network, or other I/O(optional) |
|---|
| Power input | 600W, 100~240 VAC EXTERNAL AC-DC ADAPTER; 6X 10.8V, 7,500MAH, 81WH BATTERIES · Input 19VDC/31.6A |
|---|---|
| AC/DC input | DC |
| PSU power | 600 W |
| Dimensions | 425.5 (W) × 114 (H) × 305 (D) mm |
|---|---|
| Weight | 10.9 kg |
| Chassis color | Light Gray |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
