Portable & Transportable Industrial Servers and Workstations

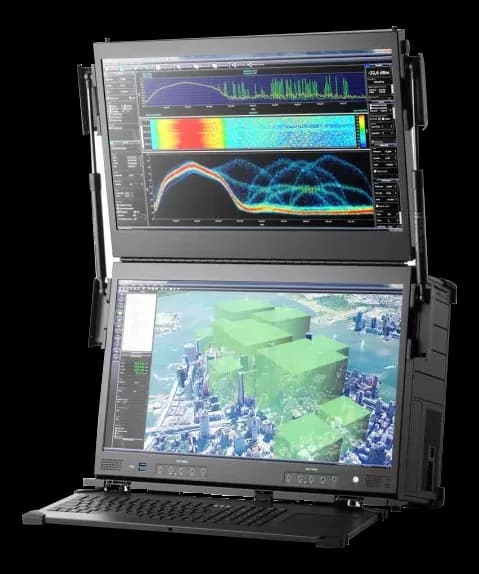

MegaPAC L2Dual 23.8" display transportable workstation with a combined 7680x4320 resolution
- Manufacturer
MegaPAC L2 is a transportable workstation meant to bring a complete supervision station where it is needed: analysis, monitoring and control even where an equipped desk cannot reach.
The power section provides for several configurations: an 850 W 80 PLUS GOLD power supply as standard, the 1000 W or 1200 W 80 PLUS PLATINUM variants as an alternative and, for direct current input, an optional 28 V PSU.
Panels are offered in UHD, FHD and WUXGA versions, including touchscreen ones; transport is covered by the padded transit case with wheels included in the supplied equipment.
At a glance
- CPU class: AMD Ryzen
- CPU socket count: 1–2
- Memory: UP TO 1TB DDR4 RAM
- RAM type: DDR4
- Maximum RAM: 1 TB GB
Technical specifications
| Processor | LATEST SINGLE/DUAL INTEL® XEON, INTEL® CORE, AMD RYZEN™, OR AMD EPYC™ |
|---|---|
| Graphics | INTEGRATED HD GPU OR APPLICATION-SPECIFIC GRAPHIC CONTROLLER |
| CPU class | AMD RyzenIntel Xeon |
| CPU socket count | 1–2 |
| Memory | UP TO 1TB DDR4 RAMUp to 1TB DDR5 RAM |
|---|---|
| RAM type | DDR4DDR5 |
| Maximum RAM | 1 TB GB |
| Storage | UP TO 150TB (REMOVABLE OPTION AVAILABLE)(max)Up to 48TB (Removable Option Available)(max) |
|---|---|
| RAID | RAID 0 |
| Number of displays | 2 |
|---|---|
| Video outputs | 7680x4320 |
| Display size | 23.8 |
| Wireless | Bluetooth(optional)Wi-Fi(optional) |
|---|
| Supply voltage | 100–240 V AC28 V DC(optional) |
|---|---|
| AC/DC input | ACDC(optional) |
| PSU power | 850–1200 W(optional) |
| Dimensions | 624 × 414 × 268 mm (W×H×D) |
|---|---|
| Weight | ~45 LBS (20KG) kg |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
