Portable & Transportable Industrial Servers and Workstations

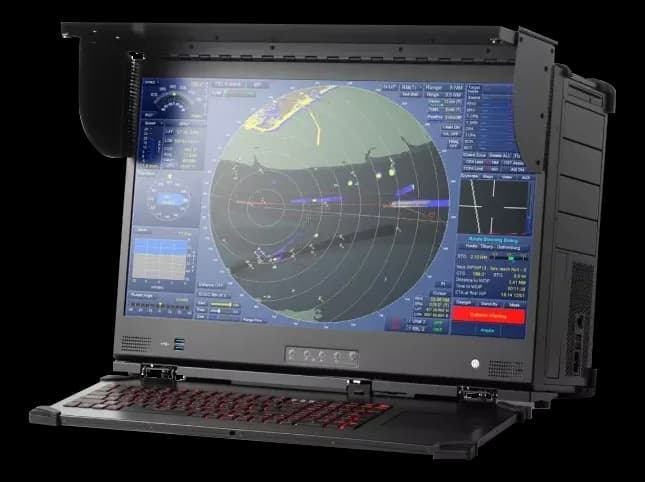

MegaPAC L1Transportable workstation with a 23.8" or 24" display and up to 7 expansion slots
- Manufacturer
MegaPAC L1 is a transportable industrial workstation in the MegaPAC family: a complete station that travels like a piece of luggage and goes into service where it is needed, from field testing to the temporary control room.
On the power side it carries an 850 W 80 PLUS GOLD power supply as standard, with 1000 W and 1200 W variants in the 80 PLUS PLATINUM class provided as options.
The panel is chosen among UHD, FHD and WUXGA versions, including touchscreen or high-brightness ones; the padded transit case with wheels and customizations for military use complete the supplied equipment.
At a glance
- Processor: Latest Single/Dual Intel Xeon, Intel Core, AMD Ryzen, or AMD EPYC
- CPU class: AMD Ryzen
- CPU socket count: 1–2
- Memory: UP TO 1TB DDR4 RAM
- RAM type: DDR4
Technical specifications
| Processor | Latest Single/Dual Intel Xeon, Intel Core, AMD Ryzen, or AMD EPYC |
|---|---|
| Graphics | Integrated HD GPU or Application-Specific Graphic Controller |
| CPU class | AMD RyzenIntel Xeon |
| CPU socket count | 1–2 |
| Memory | UP TO 1TB DDR4 RAM |
|---|---|
| RAM type | DDR4DDR5 |
| Maximum RAM | 1 TB GB |
| Storage | Up to 36TB (Removable Option Available)(max)Up to 48TB (Removable Option Available)(max)UP TO 150TB (REMOVABLE OPTION AVAILABLE)(max) |
|---|---|
| RAID | RAID 0 |
| Number of displays | 1 |
|---|---|
| Display size | 23.8 |
| Wireless | Wi-Fi(optional)Bluetooth(optional) |
|---|
| Power input | 850W 100/240VAC, 50/60HZ 80 PLUS GOLD RATED V |
|---|---|
| AC/DC input | DC |
| PSU power | 850–1200 W(optional) |
| Dimensions | 23.11" (W) x 15.12" (H) x 9.02" (D) = 587 x 384 x 229 mm |
|---|---|
| Weight | ~40 lbs (18 kg) |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
