Portable & Transportable Industrial Servers and Workstations

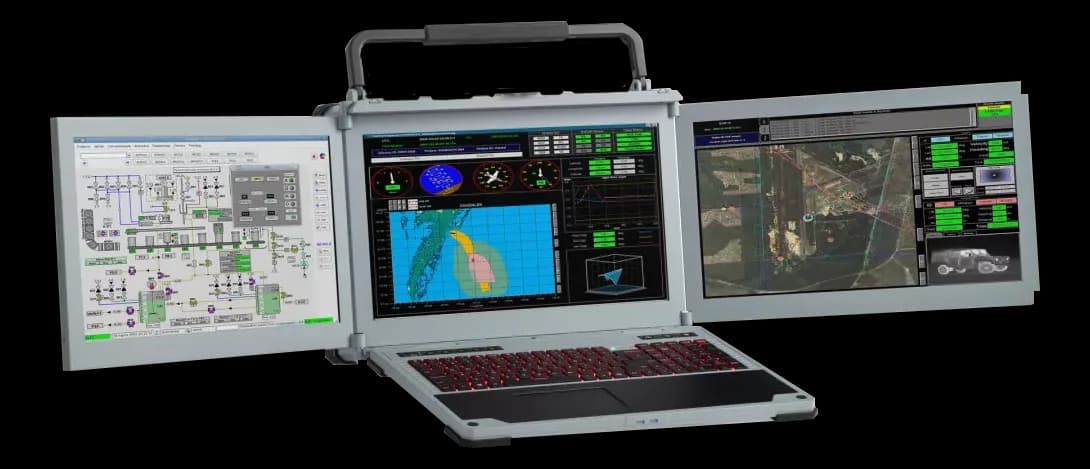

NotePAC III Pro VPortable workstation with three 17.3" displays and an Intel Xeon D-2183IT CPU
- Manufacturer
NotePAC III Pro V is a portable workstation for work in the field, meant to offer a complete station where a fixed machine cannot reach.
Two traits set it apart: runtime, with six 99Wh batteries on board, and the network equipment, which ranges from quad LAN on an Intel I350-AM4 controller to dual 10G SFP+ and 10Gbase-T interfaces.
DDR5 memory starts at 32GB and expands to 512GB and beyond; the system resides on a 1TB M.2 NVMe, while four removable 2.5" bays take up to 8TB each.
At a glance
- Processor: Intel® Xeon® D-2183IT
- CPU class: Intel Xeon
- Memory: 32GB DDR5 RAM GB
- RAM type: DDR4
- Storage: 1TB M.2 NVMe, upgradable to 4 TB NVMe
Technical specifications
| Processor | Intel® Xeon® D-2183IT |
|---|---|
| Graphics | NVIDIA QUADRO P4000 |
| CPU class | Intel Xeon |
| Memory | 32GB DDR5 RAM GB |
|---|---|
| RAM type | DDR4DDR5 |
| Storage | 1TB M.2 NVMe, upgradable to 4 TB NVMe1TB Data Drive (Total of 4 removable hard drive cages)512GB OS Drive4X STANDARD REMOVABLE DRIVE BAYS FOR UP TO 8TB EACH(SSD/HDD)4 standard removable 2.5" slots for up to 8TB each(max)1TB SSD (Total of 4 removable hard drive cages)(SSD/HDD) |
|---|
| Number of displays | 3 |
|---|---|
| Display size | 17.3 |
| Expansion | PCIe x8, PCIe x16 |
|---|
| Power input | 600W, 100~240 VAC AC-DC ADAPTER; 6X 10.8V, 7,500MAH, 81WH BATTERIES V |
|---|---|
| AC/DC input | DC |
| PSU power | 600 W |
| Dimensions | 335 x 437 x 152.4 mm (13.2 x 17.2 x 6.0 in, chiuso) |
|---|---|
| Weight | 27 LBS (12.25 KG) kg |
| Chassis material | alluminio |
| Chassis color | Light Gray |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
