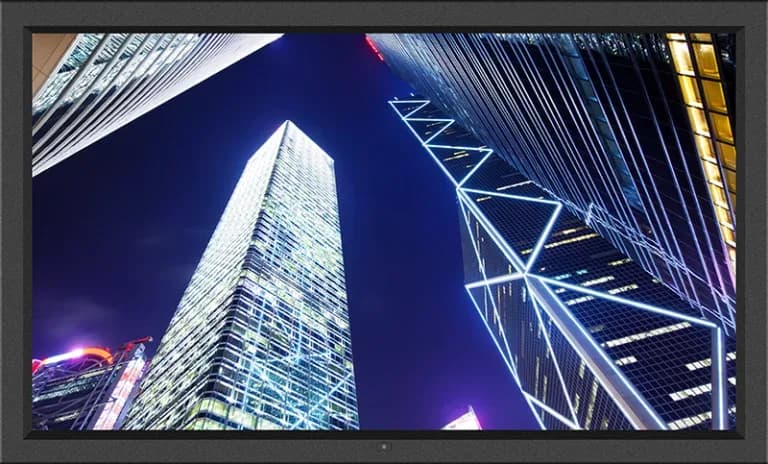

NAP-K4343" aluminium industrial monitor for departments and control rooms
- Manufacturer
- Configurations
- 5 available configurations
The dual mounting formula, on the wall or on a desk stand, lets it work both as a shared department screen and as a station monitor in operations rooms. The frame finish is Dark.
The declared operating temperature is 0~55 °C and the MTBF is 30000 h: references intended for a screen that stays on for the whole shift.
The NAP-K43 family gathers several configurations of the same base; an example part number is NAP-K43/DC12.
At a glance
- Display size: 43 ″
- Resolution: 3840x2160 4K
- Brightness: Up to 399 standard cd/m²
- AC/DC input: AC
- Power input: 100–240 V
Technical data
Finishes
Standard colours. Other RAL finishes on request from our engineering team.
- RAL 9005Jet black
Technical specifications
| Display size | 43 ″ |
|---|---|
| Resolution | 3840x2160 4K |
| Brightness | Up to 399 standard cd/m² |
| Video inputs | DisplayPort(3840x2160)HDMI(2.0)HDMI(1.4)DisplayPort(1.2) |
| Aspect ratio | 16:9 |
| Contrast ratio | 1000 : 1(typ) |
| Backlight type | LED |
| Response time | 12 ms |
| Viewing angle | 89/89/89/89 |
| Pixel pitch | 0.2451 mm |
| Display colors | 1.07 Billion, 10-bit |
| Active area | 941.184 × 529.416 mm |
| Surface treatment | Anti-glare (AG) |
| Surface hardness | 2H |
| Audio | 2ch Linear PCM3.5mm stereo jack30kΩ / 2.8V(input) |
|---|
| AC/DC input | AC |
|---|---|
| Power input | 100–240 V |
| Power consumption | 68 W9 W(saving)2 W(off) |
| Mounting | Wall MountDesktop / StandVESA Mount(600x400) |
|---|---|
| Dimensions | 1025 × 619 × 82.8 mm |
| Weight | 37.2 kg43 kg(gross) |
| Chassis material | alluminio |
| IP rating | IP65 |
|---|---|
| Operating temperature | 0–55 °C |
| Storage temperature | -20–60 °C |
| Operating altitude | 4876.8 m |
| MTBF | 30000 h |
| Certifications | FCCUKCAWEEE (2012/19/UE)REACHCERoHS(3) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| NAP-K43/DC12 |
| NAP-K43/DC125 |
| NAP-K43/DC24 |
| NAP-K43/DC48 |
| NAP-K43/TPC-10 |
