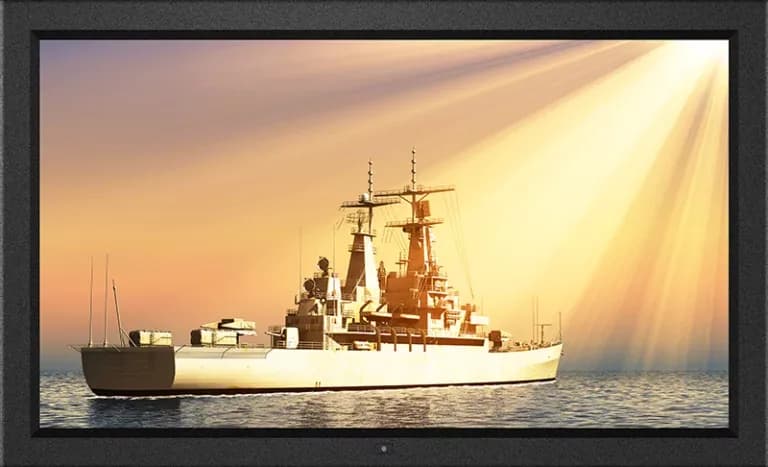

NAP-K3231.5" wall-mount industrial monitor with 300 cd/m² brightness
- Manufacturer
- Configurations
- 5 available configurations
Designed for the visual oversight of control rooms and departments, NAP-K32 stays readable at a distance from the workstation, in a raised position and clear of the benches. The frame has a Dark finish and weighs 23.9 kg.
Power input is AC 100~240 V and the declared operating temperature is 0~55 °C, for continuous operation in production environments.
The NAP-K32 family brings together several configurations of the same base; an example part number is NAP-K32/DC12.
At a glance
- Display size: 31.5 ″
- Resolution: 3840x2160 4K
- Brightness: Up to 399 standard cd/m²
- AC/DC input: AC
- Power input: 100–240 V
Technical data
Finishes
Standard colours. Other RAL finishes on request from our engineering team.
- RAL 9005Jet black
Technical specifications
| Display size | 31.5 ″ |
|---|---|
| Resolution | 3840x2160 4K |
| Brightness | Up to 399 standard cd/m² |
| Video inputs | DisplayPort(3840x2160)HDMI(2.0)HDMI(1.4)DisplayPort(1.2) |
| Aspect ratio | 16:9 |
| Contrast ratio | 1000 : 1(typ) |
| Backlight type | LED |
| Response time | 20 ms |
| Viewing angle | 89/89/89/89 |
| Pixel pitch | 0.181 mm |
| Display colors | 1.07 Billion, 10-bit |
| Active area | 698.4 × 392.85 mm |
| Surface treatment | Anti-glare (AG) |
| Surface hardness | 3H |
| Audio | 3.5mm stereo jack10W x 2(speaker) |
|---|
| AC/DC input | AC |
|---|---|
| Power input | 100–240 V |
| Power consumption | 56 W9 W(saving)2 W(off) |
| Mounting | Wall MountVESA Mount(300x300) |
|---|---|
| Dimensions | 780 × 474 × 88.2 mm |
| Weight | 23.9 kg28.7 kg(gross) |
| Chassis material | alluminio |
| IP rating | IP65 |
|---|---|
| Operating temperature | 0–55 °C |
| Storage temperature | -20–60 °C |
| Operating altitude | 4876.8 m |
| MTBF | 30000 h |
| Certifications | FCCUKCAREACHWEEE (2012/19/UE)CERoHS(3) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| NAP-K32/DC12 |
| NAP-K32/DC125 |
| NAP-K32/DC24 |
| NAP-K32/DC48 |
| NAP-K32/TPC10 |
