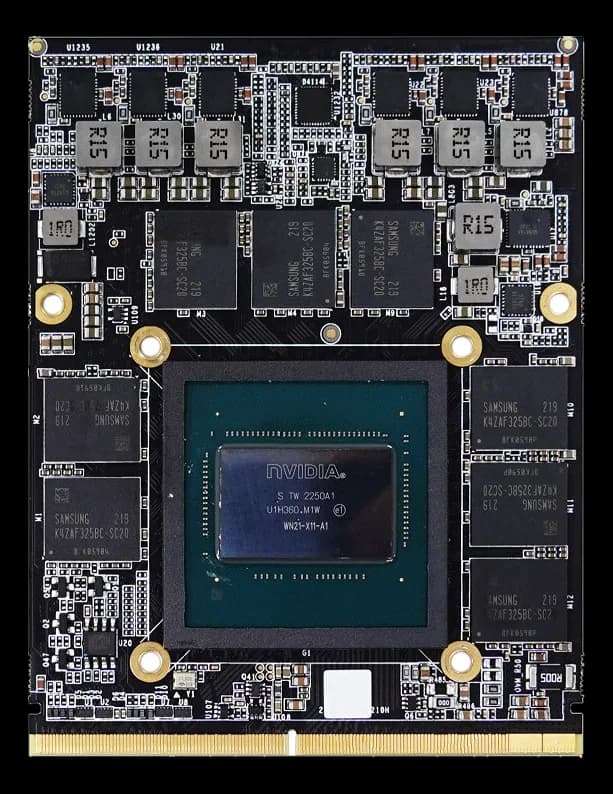

MX5000A-WPMXM Type B module with NVIDIA RTX 5000 Ada Generation Embedded GPU
- Manufacturer
- Configurations
- 1 available configurations
MX5000A-WP is an MXM version 3.1 Type B graphics module measuring 82.0 x 105.0 mm, built on the NVIDIA RTX 5000 Ada Generation Embedded GPU with NVIDIA Ada Lovelace architecture. It integrates into embedded carrier boards where rendering and inference coexist in the same slot, rather than on two separate boards.
The defining axis is the ratio between compute and bandwidth: 41.15 TFLOPS FP32 peak and 576 GB/s over a 256-bit memory interface, with support for Windows 10/11 64-bit and CE/FCC/UKCA certification.
Catalogue configuration: MX5000A-WPA-B1.
At a glance
- 9728 CUDA cores (RTX 5000 Ada)
- Memory with Error Correction Code (ECC)
- Conformal coating as optional service
- Up to 4 DisplayPort 1.4a outputs
- Total Graphics Power 115 W
Technical specifications
| Graphics | NVIDIA RTX 5000 Ada Generation Embedded GPU |
|---|
| Memory | 16GB GDDR6 |
|---|
| Architecture standard | MXM |
|---|---|
| Board function | GPU / Graphics |
| Bus interface | PCIe Gen4 x16 |
| Power consumption | 115 W |
|---|
| Dimensions | 82.0 x 105.0 |
|---|
| Operating temperature | 0–55 °C |
|---|---|
| Storage temperature | -40–85 °C |
| Operating systems | Windows |
|---|
| Form factor | MXM Type B |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| MX5000A-WPA-B1 |
