Portable & Transportable Industrial Servers and Workstations

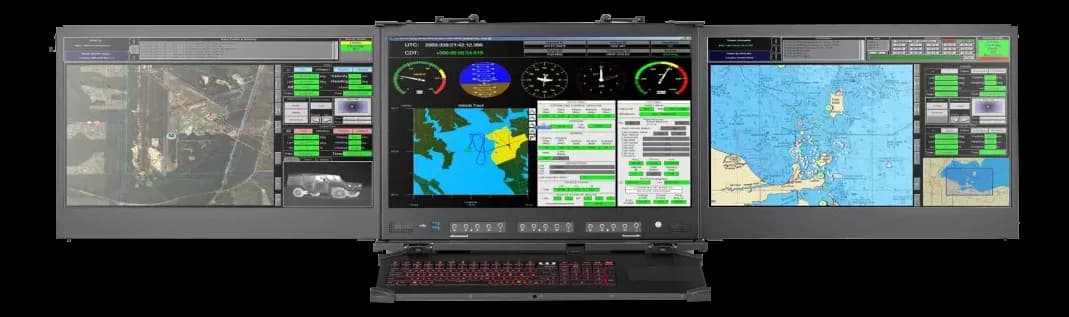

MegaPAC L3Transportable workstation with three 23.8" displays for mobile multi-monitor stations
- Manufacturer
MegaPAC L3 is the transportable workstation in the MegaPAC series meant for operational setups that are assembled and dismantled as the activity moves: testing, supervision, temporary stations in the field.
The computing platform accepts latest-generation Intel Xeon, Intel Core, AMD Ryzen or AMD EPYC processors; the standard power supply is an 850 W 80 PLUS GOLD, with a 28 V DC PSU among the options.
Like the rest of the family it travels in the padded transit case with wheels included in the supplied equipment and admits military customizations, from dedicated connectors to TEMPEST SDIP-27 configurations.
At a glance
- Processor: LATEST SINGLE/DUAL INTEL® XEON, INTEL® CORE, AMD RYZEN™, OR AMD EPYC™
- CPU class: AMD Ryzen
- CPU socket count: 1–2
- Memory: Up to 1TB DDR5 RAM
- RAM type: DDR4
Technical specifications
| Processor | LATEST SINGLE/DUAL INTEL® XEON, INTEL® CORE, AMD RYZEN™, OR AMD EPYC™ |
|---|---|
| Graphics | INTEGRATED HD GPU OR APPLICATION-SPECIFIC GRAPHIC CONTROLLER |
| CPU class | AMD RyzenIntel Xeon |
| CPU socket count | 1–2 |
| Memory | Up to 1TB DDR5 RAMUP TO 1TB DDR4 RAM |
|---|---|
| RAM type | DDR4DDR5 |
| Maximum RAM | 1 TB GB |
| Storage | UP TO 150TB (REMOVABLE OPTION AVAILABLE)(max)Up to 36TB (Removable Option Available)(max) |
|---|---|
| RAID | RAID 0 |
| Number of displays | 3 |
|---|---|
| Display size | 23.8 |
| Wireless | Wi-Fi(optional)Bluetooth(optional) |
|---|
| Power input | 850W 100/240VAC, 50/60Hz auto-switching 80 PLUS GOLD rated Optional: 1000W or 1200W 100/240VAC, 50/60Hz auto-switching 80 PLUS Platinum rated (with 10 year warranty) Optional: 28VDC power supply V |
|---|---|
| AC/DC input | DC |
| PSU power | 850–1200 W(optional) |
| Dimensions | 435 × 368 × 298.5 mm |
|---|---|
| Weight | ~52.82 LBS (24KG) kg |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
