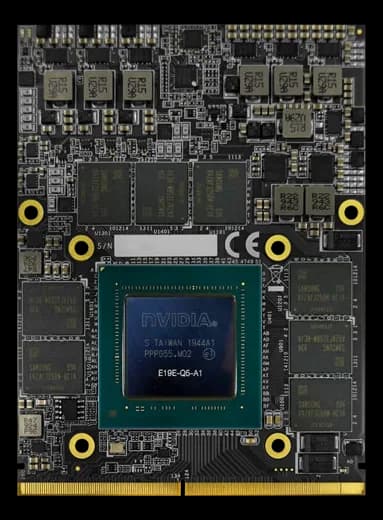

M3T5000-WNMXM 3.1 Type B+ graphics module with NVIDIA Quadro RTX 5000
- Manufacturer
Measuring 82.0 x 110.0 mm and weighing 0.072 kg, the module plugs into the MXM carrier board of embedded systems that must handle display and compute inside already defined chassis, from medical imaging to factory inspection.
The NVIDIA Quadro RTX 5000 GPU is built on the Turing TU104 architecture, with 3072 CUDA cores, 384 Tensor cores and 48 RT cores, and handles real-time ray tracing. The 16 GB GDDR6 works on a 256-bit bus at 14 Gbps, for 448 GB/s of bandwidth, and video output reaches 7680 x 4320.
The driver is available for Windows 10 64-bit and Linux 64-bit; Aetina offers conformal coating as an option across the MXM range.
At a glance
- 9.4 TFLOPS peak in FP32
- Up to 4 DisplayPort 1.4 displays
- Total Graphics Power 110 W
- CE and FCC certifications
Technical specifications
| Graphics | NVIDIA Quadro RTX 5000 · Support CUDA Compute version 7.5, OpenCL 1.2, OpenGL 4.6, DirectX 12 and Vulkan 1.1 API |
|---|
| Memory | 16GB GDDR6 |
|---|
| Architecture standard | MXM |
|---|---|
| Board function | GPU / Graphics |
| Bus interface | PCI Express 3.0 |
| Power consumption | 110 W |
|---|
| Dimensions | 82.0 x 110.0 mm (3.22” x 4.33”) |
|---|---|
| Weight | 0.072 kg |
| Operating temperature | 0–55 °C |
|---|---|
| Storage temperature | -40–85 °C |
| Certifications | CEFCC |
|---|
| Operating systems | WindowsLinux |
|---|
| Form factor | MXM Type B |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
