KVM Switches for 19″ Rack Cabinets
L1201U 20″ KVM LCD console with anti-glare display and 16.7M colors
- Manufacturer
- Configurations
- 31 available configurations

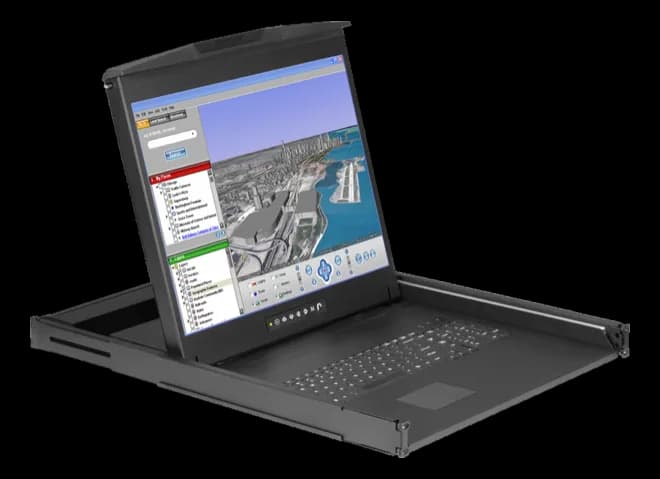

L120 is a 1U local KVM console for 19″ rack cabinets, with a 20″ LCD display integrated together with keyboard and touchpad. It is used for local management of server and network equipment in data center and industrial environments.
The panel uses CCFL backlighting with a 0.255 mm pixel pitch and a 16 ms response time; the surface treatment includes an anti-glare (AG) finish and hard-coating with 3H hardness. Operation covers the 0~55 °C thermal range, with a stated MTBF of 45000 h.
The family comprises 56 configurations; the example part number is L120-1201e_EU.
At a glance
- Video inputs: HDMI
- Brightness: Up to 399 standard cd/m²
- KVM / console type: Local KVM
- Keyboard & pointing device: 104-key USB keyboard with touchpad
- AC/DC input: AC
Technical specifications
| Video inputs | HDMIComposite BNCSDIS-VideoDVIVGADisplayPort(optional · 1.0) |
|---|---|
| Brightness | Up to 399 standard cd/m² |
| Contrast ratio | 800 : 1(typ) |
| Viewing angle | 89/89/89/89 |
| Pixel pitch | 0.255 mm |
| Display colors | 16.7 M |
| Active area | 408.0 × 306.0 mm |
| Backlight type | CCFL |
| Response time | 16 ms |
| Surface hardness | 3H |
| Surface treatment | Hard-coatingAnti-glare (AG) |
| KVM / console type | Local KVM |
|---|---|
| Keyboard & pointing device | 104-key USB keyboard with touchpad |
| Audio | Dual Stereo Speaker2ch Linear PCM ( 32 / 44.1 / 48 KHz )SMPTE 299M / 272M-C(SDI)2 x 2W(speaker) |
| AC/DC input | AC |
|---|---|
| Power input | 100–240 V66–160 V(optional)18–36 V(optional)9–18 V(optional)36–75 V(optional)180–425 V(optional) |
| Power consumption | 1 W(single console · off)2 W(console · saving)4 W(single console · saving)34 W(with kvm · saving)34 W(console w/ kvm · saving)45 W(console)78 W(console w/ kvm)48 W(single console)78 W(with kvm)1 W(console / kvm · off) |
| Rack units | 1 U |
|---|---|
| Weight | 14.5 kg15.5 kg22 kg(gross)23.4 kg(gross) |
| Operating temperature | 0–55 °C |
|---|---|
| Storage temperature | -20–60 °C |
| Operating altitude | 4876.8 m |
| MTBF | 45000 h |
| Certifications | WEEE (2012/19/UE)UKCAFCCCEREACHRoHS(3) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| L120-1201e_EU |
| L120-1602e_EU |
| L120-801DPB_EU |
| L120-801DPE_EU |
| L120-801KB_EU |
| L120-801KE_EU |
| L120-802e_EU |
| L120-IP1602e_EU |
| L120-IP802e_EU |
| L120-MU1602e_EU |
| L120-MU1603e_EU |
| L120-MU1604e_EU |
