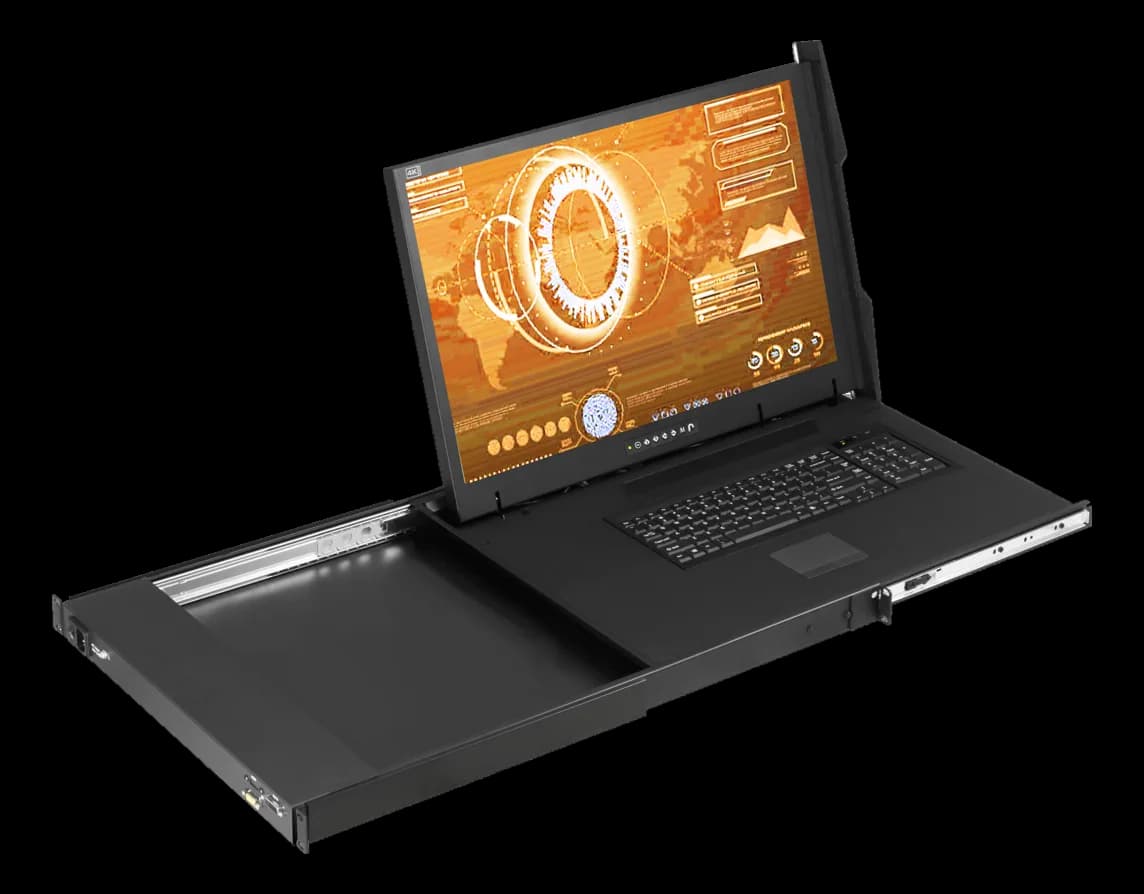

K123 - 1U 23" 4K LED-backlit LCD Console Drawer

K12319″ rack LCD console with 23.8" display, local KVM and LED backlight

Manufacturer
Configurations: 5 available configurations

K123 is an LCD console for 19″ rack cabinets with a 23.8" screen and local KVM, suited to direct management of equipment in technical rooms and data centers.

The display combines LED backlighting, 250 cd/m² brightness and an anti-glare (AG) treatment with 3H surface hardness, for color rendering across 1070 colors. The DisplayPort video input and the 60 Hz refresh complete the graphics section; the AC power supply accepts 100~240 V with a stated MTBF of 30000 h.

The family is available in a single configuration, with example part number K123-801Ke_EU.

At a glance

KVM / console type: Local KVM
Number of ports: 8
Operating temperature: 0–55 °C

Request information Full specifications ↓

Technical specifications

Aspect ratio	16:9
Viewing angle	89/89/89/89
Pixel pitch	0.13725 mm
Display colors	1.07 Billion
Active area	527.04 × 296.46 mm
Backlight type	LED
Response time	14 ms
Refresh rate	60 Hz
Surface hardness	3H
Surface treatment	Anti-glare (AG)

KVM / console type	Local KVM
Number of ports	8

Operating temperature	0–55 °C
Storage temperature	-20–60 °C
Operating altitude	4876.8 m
MTBF	30000 h

Certifications	UKCAFCCCEREACHWEEE (2012/19/UE)RoHS(3)

Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.

Family configurations

Columns show only what changes between configurations: the rest of the sheet applies to the whole family.

Configuration (PN)	Resolution	Video inputs	Keyboard & pointing device	AC/DC input
K123-801DPB_EU	—	—	—	—
K123-801DPE_EU	—	—	—	—
K123-801Ke_EU	1600x12001920x1200 WUXGA3840x2160 4K	DisplayPortHDMISDI	104-key USB keyboard with either touchpad or trackball	AC
K123e_EU	3840x2160 4K	DisplayPortSDIHDMI	104-key USB keyboard with either touchpad or trackball	AC
K123e_EU/HDMI	3840x2160 4K	HDMIDisplayPort	2x USB type A	AC+DC
