K1191U local KVM console drawer, 18.4″ 4K LCD, DisplayPort, HDMI and DVI inputs
- Configurations
- 2 available configurations

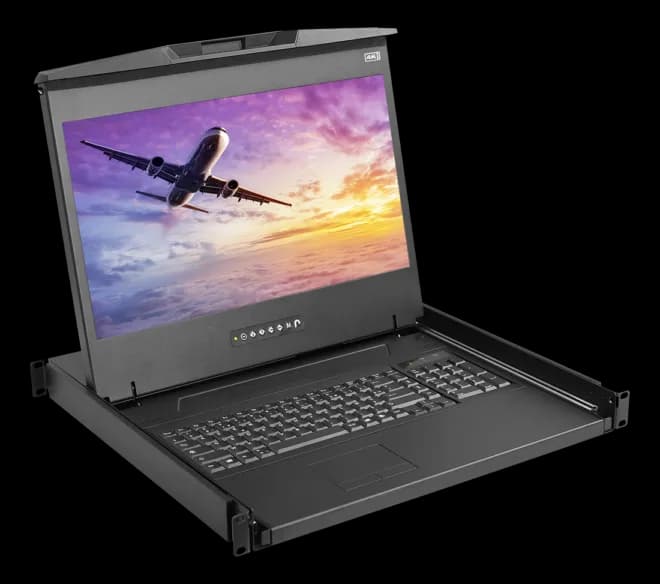

K119 is an Austin Hughes console drawer for 19″ rack cabinets: LED monitor, keyboard and pointing device in a pull-out drawer, for accessing servers directly in front of the cabinet. Local access, not remote: the maintenance workstation lives inside the rack.
The panel runs at a native 3840×2160 at 60 Hz and accepts DisplayPort, HDMI and DVI sources. 16:10 sources go up to 1920×1200, FHD sources to 1920×1080, so older servers remain manageable. It mounts on rails with a spacing from 470 to 700 mm.
It is available with an integrated 8-port KVM (K119-801K), 3G/HD/SD SDI input, a front USB hub port for peripherals and DC power at 12, 24, 48, 125 or 250 V as an alternative to AC.
At a glance
- 460 mm depth
- 104-key keyboard with touchpad or trackball
- Dual built-in stereo speakers
- Operating temperature −20~70 °C
- Installation manageable by a single operator
Technical specifications
| Resolution | 1920x1080 FHD1920x1200 WUXGA3840x2160 4K |
|---|---|
| Video inputs | DisplayPortDVIHDMISDI(optional) |
| Brightness | Up to 399 standard |
| Contrast ratio | 1000 |
| Display colors | a 4K display that support up to 3840× 2160 @60Hz native resolution with 16.7M colors ( 8-bit )3840× 2160 @60Hz native resolution / 1.07B colors |
| Backlight type | LED |
| KVM / console type | Local KVM |
|---|---|
| Number of ports | 8(optional) |
| Keyboard & pointing device | 104-key USB keyboard with either touchpad or trackball |
| USB ports | Front USB hub port for device access ( USB )(optional) |
| Audio | Built-in dual stereo speakers |
| AC/DC input | ACDC(optional) |
|---|---|
| Supply voltage | 12 V(optional)24 V(optional)48 V(optional)125 V(optional)250 V(optional) |
| Power consumption | 1 W |
| Rack units | 1 |
|---|---|
| Dimensions | 442 x 460 x 44 mm |
| Operating temperature | -20–70 °C |
|---|---|
| MTBF | 30000 h |
| Certifications | CEFCCREACHRoHSTAAUKCAWEEE (2012/19/UE) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| K119-801KB_EU |
| K119-801KE_EU |
