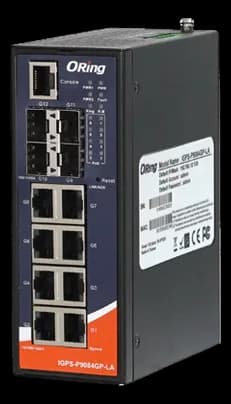

IGPS-P9084GP-LAManaged 8+4 fiber switch with PoE and IEC 61850-3 certification for substations
- Manufacturer
IGPS-P9084GP-LA is a managed Ethernet switch with 8 copper ports and 4 fiber ports, intended for industrial networks in demanding environments such as electrical substations and automation plants. Its compact mounting and IP30 protection rating make it usable in distribution panels and cabinets.
IEC 61850-3 and IEEE 1613 certifications define its use in the power utility field, with an extended operating range from -40 to 75 °C. The 24 Gbps switching bandwidth and the 7 µs latency support store-and-forward forwarding over redundant topologies, while all 8 copper ports deliver PoE.
At a glance
- Fiber ports (SFP/FX): 4
- Fiber port speed: 100/1000Base-X
- PoE ports: 8
- PoE power budget: 240 W
- Serial interfaces: RS-232 in RJ45 connector with console cable. 115200bps, 8, N, 1
Technical specifications
| Copper ports (RJ45/M12) | 8 |
|---|---|
| Fiber ports (SFP/FX) | 4 |
| Fiber port speed | 100/1000Base-X |
| PoE ports | 8 |
| Connectors | Terminal block |
| PoE | 802.3af PoE802.3at PoE+ |
| PoE power budget | 240 W |
| Serial interfaces | RS-232 in RJ45 connector with console cable. 115200bps, 8, N, 1 |
| Management | Managed |
|---|---|
| Redundancy protocols | O-RingMRPMSTPRSTPOpen-RingO-Chain |
| Ethernet standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Forwarding mode | Store-and-forward |
| Switching bandwidth | 24 Gbps |
| Switching latency | 7 us |
| Throughput | 17.856 Mpps |
| MAC table | 8192 address |
| Jumbo frame | 9.6 KB |
| Packet buffer | 4 Mbit |
| Priority queues | 8 queue |
| IGMP multicast groups | 256 group |
| Power consumption | 13.2 W |
|---|---|
| Alarm relay | Yes(1A@24VDC) |
| Mounting | DIN Rail Mount |
|---|---|
| Dimensions | 54.3 × 145.1 × 108.3 mm |
| Weight | 0.779 kg |
| Operating temperature | -40–75 °C |
|---|---|
| IP rating | IP30 |
| Storage temperature | -40–85 °C |
| MTBF | 602954 h |
| Manufacturer warranty | 5 year |
| Certifications | IEEE 1613IEC 61850-3 |
|---|---|
| EMC (emission/immunity) | IEC 61000-4-2 ESDIEC 61000-4-4 EFTIEC 61000-4-5 SurgeIEC 61000-4-6 CSIEC 61000-4-8 PFMFEN 55035FCC Part 15BIEC 61000-4-3 RSCISPR 32EN 55032 |
| Electrical safety | EN 62368-1 |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
