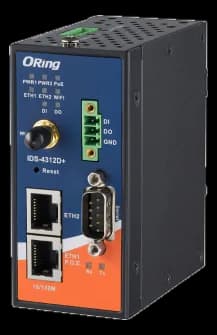

IDS-4312D+WLAN device server with serial port and digital I/O
- Manufacturer
IDS-4312D+ brings a serial unit onto the network where Ethernet cabling does not reach: the DB9 port operates in RS-232, RS-422 or RS-485 and the link runs over WLAN in client mode, with an external antenna on an SMA connector.
Two copper Ethernet ports remain available for wired termination, along with one digital input and one digital output for plant dry contacts. The -25 to 70 °C operating range and the dual terminal-block input place it in field cabinets and technical rooms.
At a glance
- Serial ports: 1
- Serial interfaces: 1× DB9
- Power input: 12–48 V
- Redundant input: Yes
- Power consumption: 7 W
Technical specifications
| Serial ports | 1 |
|---|---|
| Serial interfaces | 1× DB9RS-232/422/485 |
| Copper ports (RJ45/M12) | 2 |
| Wireless | Wi-Fi 4 (802.11n) |
|---|
| Power input | 12–48 V |
|---|---|
| Redundant input | Yes |
| Power consumption | 7 W |
| Mounting | DIN Rail Mount |
|---|---|
| Dimensions | 45 × 95 × 81 mm |
| Weight | 0.395 kg |
| IP rating | IP30 |
|---|---|
| Operating temperature | -25–70 °C |
| Storage temperature | -40–85 °C |
| MTBF | 381084 h |
| EMC (emission/immunity) | CISPR 32IEC 61000-4-8 PFMFIEC 61000-4-6 CSIEC 61000-4-5 SurgeIEC 61000-4-4 EFTIEC 61000-4-3 RSIEC 61000-4-2 ESDEN 55024FCC Part 15BEN 55032 |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
