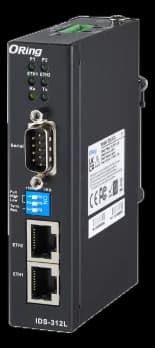

IDS-312LIndustrial device server with one serial port and two Ethernet ports
- Manufacturer
IDS-312L brings serial equipment onto the network — instruments, meters, PLCs — inside electrical cabinets and field enclosures, where the electronics work without air conditioning.
The RS-232/422/485 port reaches 921.6 kbps and the two 10/100 Base-T(X) ports let a second unit be daisy-chained without a dedicated switch. The −40 to 70 °C range, storage up to 85 °C and an MTBF of 1,479,078 hours describe the continuous-duty profile; immunity covers the IEC 61000-4 series and emissions EN 55032, the reference for cabinets with drives on board.
At a glance
- Serial ports: 1
- Serial interfaces: 1× RS-232/422/485
- Power input: 12–48 V
- Redundant input: Yes
- Power consumption: 4.8 W
Technical specifications
| Serial ports | 1 |
|---|---|
| Serial interfaces | 1× RS-232/422/4851× DB9 |
| Copper ports (RJ45/M12) | 2 |
| Power input | 12–48 V |
|---|---|
| Redundant input | Yes |
| Power consumption | 4.8 W |
| Mounting | Wall MountDIN Rail Mount |
|---|---|
| Dimensions | 26 × 110 × 75 mm |
| Weight | 0.227 kg |
| IP rating | IP30 |
|---|---|
| Operating temperature | -40–70 °C |
| Storage temperature | -40–85 °C |
| MTBF | 1479078 h |
| EMC (emission/immunity) | IEC 61000-4-8 PFMFEN 55024IEC 61000-4-2 ESDEN 55032CISPR 32FCC Part 15BIEC 61000-4-3 RSIEC 61000-4-4 EFTIEC 61000-4-5 SurgeIEC 61000-4-6 CS |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
