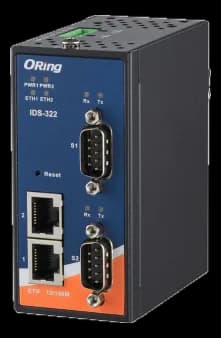

IDS-322Device server with two serial ports and Modbus gateway
- Manufacturer
IDS-322 makes serial instruments and PLCs reachable over the network: the ports, configurable as RS-232, RS-422 or RS-485, are exposed as virtual COM ports, serial tunnel or TCP and UDP sockets.
The two Ethernet ports also work in switch mode, so several units connect in daisy chain without adding a network node. Management is protected by HTTPS, SSH and an IP whitelist, while events are notified via syslog, e-mail, SNMP trap, relay and buzzer.
At a glance
- Serial ports: 2
- Serial interfaces: 2× DB9
- Supply voltage: 12–48 V DC
- Redundant input: Yes
- Mounting: Wall Mount
Technical specifications
| Serial ports | 2 |
|---|---|
| Serial interfaces | 2× DB92× RS-232/422/485 |
| Copper ports (RJ45/M12) | 2 |
| Supply voltage | 12–48 V DC |
|---|---|
| Redundant input | Yes |
| Mounting | Wall Mount |
|---|
| IP rating | IP30 |
|---|---|
| Operating temperature | -40–70 °C |
| Storage temperature | -40–85 °C |
| EMC (emission/immunity) | FCC Part 15BIEC 61000-4-2 ESDIEC 61000-4-3 RSIEC 61000-4-4 EFTIEC 61000-4-5 SurgeIEC 61000-4-6 CSIEC 61000-4-8 PFMF |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
