HOP-1919-inch open frame industrial monitor with 1000 cd/m² brightness
- Manufacturer
- Configurations
- 20 available configurations

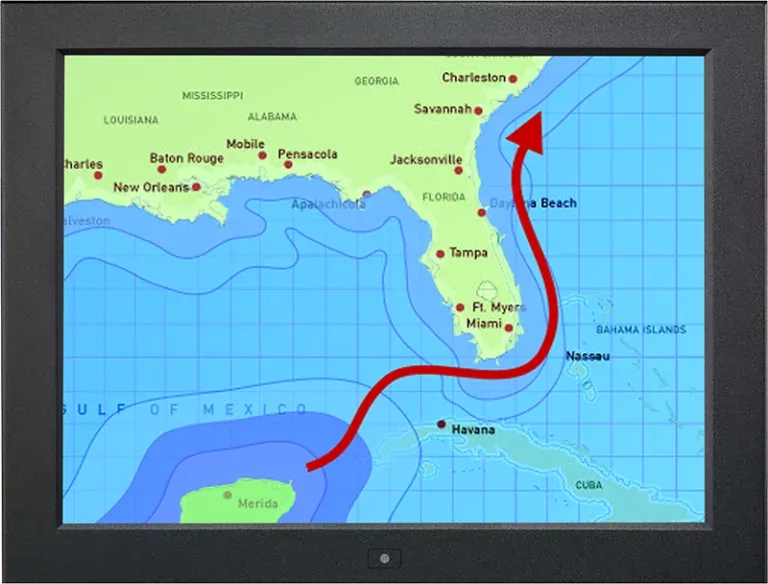

HOP-19 is an Austin Hughes monitor in open frame format, intended for integration into consoles, kiosks and operator stations in industrial environments. The frame is aluminium in a Dark finish.
Operation is specified from 0 to 55 °C with storage from -20 to 60 °C, AC power input and a declared MTBF of 30000 h. The certification set comprises CE, FCC, REACH, UKCA and WEEE (2012/19/EU).
The model heads a family of configurations; an example variant is HOP-19/AV4.4.
At a glance
- Display size: 19 ″
- Resolution: 1280x1024 SXGA
- Brightness: 1000+ sunlight cd/m²
- Video inputs: DVI
- AC/DC input: AC
Technical data
Finishes
Standard colours. Other RAL finishes on request from our engineering team.
- RAL 9005Jet black
Technical specifications
| Display size | 19 ″ |
|---|---|
| Resolution | 1280x1024 SXGA |
| Brightness | 1000+ sunlight cd/m² |
| Video inputs | DVIComposite BNCVGAHDMI(1.4)HDMI(720x480)HDMI(1280x720)SDI(optional) |
| Aspect ratio | 5:4 |
| Contrast ratio | 1000 : 1(typ) |
| Backlight type | LED |
| Response time | 5 ms |
| Viewing angle | 85/85/80/80 |
| Pixel pitch | 0.294 mm |
| Display colors | 16.7 M |
| Active area | 376.32 × 301.06 mm |
| Surface treatment | Hard-coatingAnti-glare (AG) |
| Surface hardness | 3H |
| Audio | 2ch Linear PCM30kΩ / 2.8V(output)2W x 2(speaker)SMPTE 299M / 272M-C(SDI)3.5mm stereo jack, 30kΩ / 750mV(input) |
|---|
| AC/DC input | AC |
|---|---|
| Power consumption | 39 W2 W(saving)1 W(off) |
| Mounting | Universal MountVESA Mount(100x100) |
|---|---|
| Dimensions | 473.5 × 381.1 × 57.6 mm |
| Weight | 5.7 kg8.5 kg(gross) |
| Chassis material | alluminio |
| IP rating | None / open frame |
|---|---|
| Operating temperature | 0–55 °C |
| Storage temperature | -20–60 °C |
| Operating altitude | 4876.8 m |
| MTBF | 30000 h |
| Certifications | FCCCEREACHUKCAWEEE (2012/19/UE)RoHS(3) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| HOP-19/BNC |
| HOP-19/BNC/DC12 |
| HOP-19/BNC/DC125 |
| HOP-19/BNC/DC24 |
| HOP-19/BNC/DC48 |
| HOP-19/BNC/TPC-10 |
| HOP-19/BNC/TRB |
| HOP-19/DC12 |
| HOP-19/DC125 |
| HOP-19/DC24 |
| HOP-19/DC48 |
| HOP-19/DV4.4 |
