HOP-1717-inch open frame industrial monitor with 1000 cd/m² brightness
- Manufacturer
- Configurations
- 20 available configurations

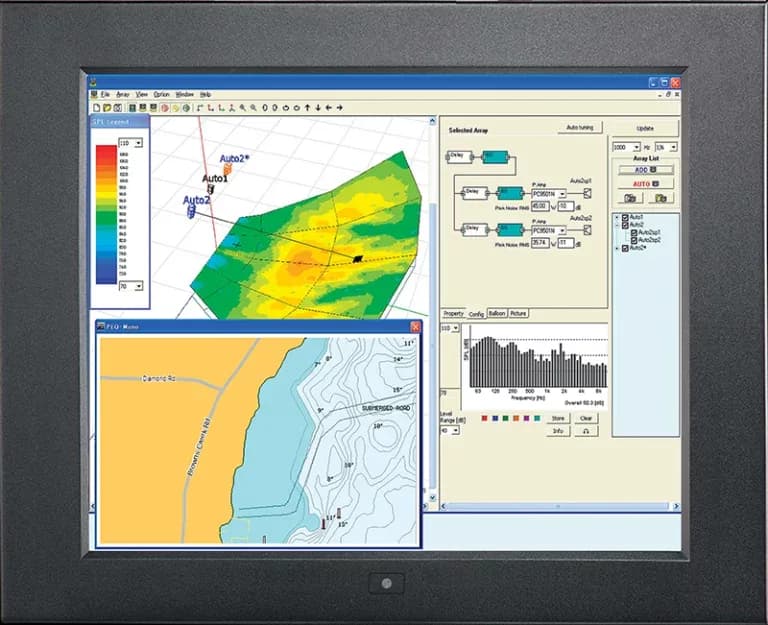

HOP-17 is an Austin Hughes monitor in an open frame configuration, designed for integration into consoles, panels and operator stations in industrial settings. The frame is aluminium in a Dark finish.
Reliability is declared with an MTBF of 50000 h and operation is specified from 0 to 55 °C, with AC power input on a 100~240 V input. On the regulatory side the CE, FCC, REACH, UKCA and WEEE (2012/19/EU) markings are stated.
The family comprises several configurations of the base model; an example variant is HOP-17/AV4.4.
At a glance
- Display size: 17 ″
- Resolution: 1280x1024 SXGA
- Brightness: 1000+ sunlight cd/m²
- Video inputs: VGA
- AC/DC input: AC
Technical data
Finishes
Standard colours. Other RAL finishes on request from our engineering team.
- RAL 9005Jet black
Technical specifications
| Display size | 17 ″ |
|---|---|
| Resolution | 1280x1024 SXGA |
| Brightness | 1000+ sunlight cd/m² |
| Video inputs | VGADVIComposite BNCHDMI(720x480)HDMI(1280x720)HDMI(1.4) |
| Aspect ratio | 5:4 |
| Contrast ratio | 1000 : 1(typ) |
| Backlight type | LED |
| Response time | 5 ms |
| Viewing angle | 85/85/80/80 |
| Pixel pitch | 0.264 mm |
| Display colors | 16.7 M |
| Active area | 337.92 × 270.33 mm |
| Surface treatment | Anti-glare (AG)(sunlight readable) |
| Surface hardness | 3H |
| Audio | Dual Stereo 2W x 2(speaker)3.5mm stereo jack, 30kΩ / 750mV(input)3.5mm stereo jack, 30kΩ / 2.8V(output) |
|---|
| AC/DC input | AC |
|---|---|
| Power input | 100–240 V |
| Power consumption | 30 W2 W(saving)1 W(off) |
| Mounting | Universal MountVESA Mount(100x100) |
|---|---|
| Dimensions | 436 × 353.6 × 58.2 mm |
| Weight | 4.9 kg7.5 kg(gross) |
| Chassis material | alluminio |
| IP rating | None / open frame |
|---|---|
| Operating temperature | 0–55 °C |
| Storage temperature | -20–60 °C |
| Operating altitude | 4876.8 m |
| MTBF | 50000 h |
| Certifications | FCCREACHWEEE (2012/19/UE)CEUKCARoHS(3) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| HOP-17/BNC |
| HOP-17/BNC/DC12 |
| HOP-17/BNC/DC125 |
| HOP-17/BNC/DC24 |
| HOP-17/BNC/DC48 |
| HOP-17/BNC/TPC-10 |
| HOP-17/BNC/TRB |
| HOP-17/DC12 |
| HOP-17/DC125 |
| HOP-17/DC24 |
| HOP-17/DC48 |
| HOP-17/DV4.4 |
