HDP-K5555-inch industrial monitor, 700 cd/m² brightness
- Manufacturer

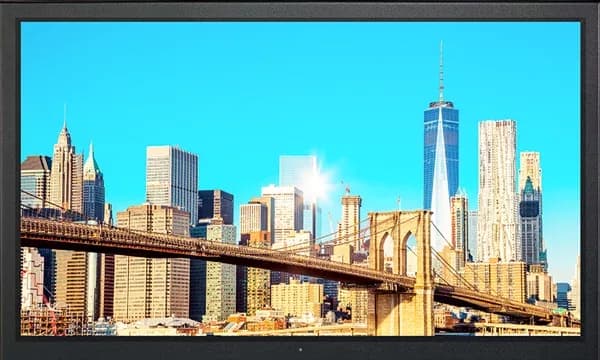

HDP-K55 is a large-format Austin Hughes monitor for industrial environments and control rooms, where a wide display surface is needed. The backlight is LED, the frame finish is Dark and the weight is 37 kg.
Reliability is declared with an MTBF of 30000 h. Power input is AC on a 100~240 V input, with storage from -20 to 60 °C and an operating altitude of 4876.8 m; alongside these, the CE, FCC, REACH, UKCA and WEEE (2012/19/EU) markings.
At a glance
- Display size: 55 ″
- Resolution: 3840x2160 4K
- Brightness: 600-999 outdoor cd/m²
- AC/DC input: AC
- Power input: 100–240 V
Technical data
Finishes
Standard colours. Other RAL finishes on request from our engineering team.
- RAL 9005Jet black
Technical specifications
| Display size | 55 ″ |
|---|---|
| Resolution | 3840x2160 4K |
| Brightness | 600-999 outdoor cd/m² |
| Video inputs | HDMI(2.0)HDMI(1.4)DisplayPort(1.2)DisplayPort(3840x2160) |
| Aspect ratio | 16:9 |
| Contrast ratio | 4000 : 1(typ) |
| Backlight type | LED |
| Response time | 12 ms |
| Viewing angle | 89/89/89/89 |
| Pixel pitch | 0.315 mm |
| Display colors | 1.07 Billion, 10-bit |
| Active area | 1209.6 × 680.4 mm |
| Surface treatment | Anti-glare (AG) |
| Surface hardness | 2H |
| Audio | 10W x 2(speaker)3.5mm stereo jack(output) |
|---|
| AC/DC input | AC |
|---|---|
| Power input | 100–240 V |
| Power consumption | 335 W2 W(off)9 W(saving) |
| Mounting | VESA Mount(600x400) |
|---|---|
| Weight | 37 kg47 kg(gross) |
| Chassis material | alluminio |
| Operating temperature | 0–55 °C |
|---|---|
| Storage temperature | -20–60 °C |
| Operating altitude | 4876.8 m |
| MTBF | 30000 h |
| Certifications | FCCWEEE (2012/19/UE)REACHUKCACERoHS(3) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
