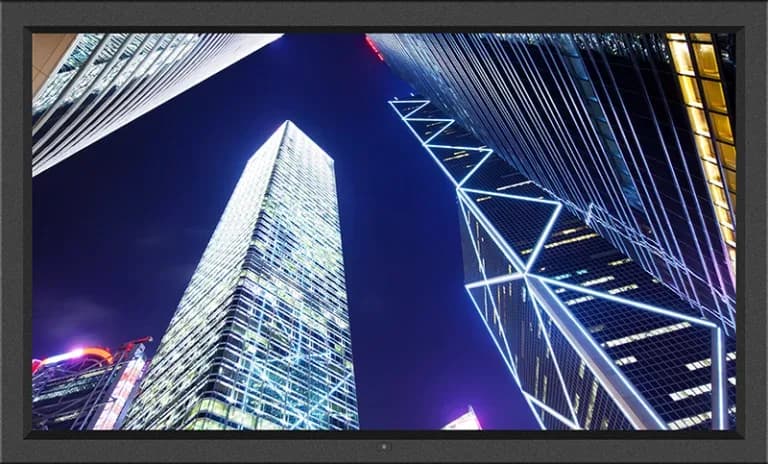

HDP-K4343-inch industrial monitor for wall or stand mounting
- Manufacturer
HDP-K43 is a large-diagonal Austin Hughes monitor for the display of information in industrial environments, from production areas to control rooms. The frame is aluminium in a Dark finish and the weight is 29 kg.
Power input is AC with a 100~240 V input; use is declared with an operating altitude of 4876.8 m and storage from -20 to 60 °C. The certification set comprises CE, FCC, REACH, UKCA and WEEE (2012/19/EU).
At a glance
- Display size: 43 ″
- Resolution: 3840x2160 4K
- AC/DC input: AC
- Power input: 100–240 V
- Power consumption: 220 W
Technical data
Finishes
Standard colours. Other RAL finishes on request from our engineering team.
- RAL 9005Jet black
Technical specifications
| Display size | 43 ″ |
|---|---|
| Resolution | 3840x2160 4K |
| Brightness | 600-999 outdoor cd/m²(sunlight readable) |
| Video inputs | HDMI(1.4)DisplayPort(3840x2160)HDMI(2.0)DisplayPort(1.2) |
| Aspect ratio | 16:9 |
| Contrast ratio | 1100 : 1(typ · sunlight readable) |
| Backlight type | LED |
| Response time | 12 ms |
| Viewing angle | 89/89/89/89 |
| Pixel pitch | 0.2451 mm |
| Display colors | 1.07 Billion, 10-bit |
| Active area | 941.184 × 529.416 mm |
| Surface treatment | Anti-glare (AG) |
| Surface hardness | 2H |
| Audio | 3.5mm stereo jack2ch Linear PCM30kΩ / 2.8V(input) |
|---|
| AC/DC input | AC |
|---|---|
| Power input | 100–240 V |
| Power consumption | 220 W2 W(off)9 W(saving) |
| Mounting | Desktop / StandWall MountVESA Mount(600x400) |
|---|---|
| Dimensions | 999 × 593 × 76.8 mm |
| Weight | 29 kg34.8 kg(gross) |
| Chassis material | alluminio |
| Operating temperature | 0–55 °C |
|---|---|
| Storage temperature | -20–60 °C |
| Operating altitude | 4876.8 m |
| MTBF | 50000 h(Sunlight Readable) |
| Certifications | FCCWEEE (2012/19/UE)REACHUKCACERoHS(3) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
