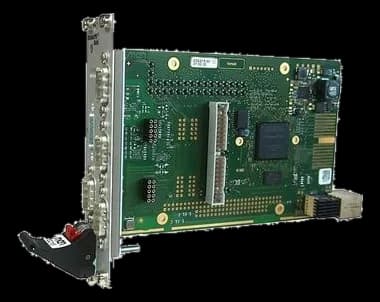

G215CompactPCI Serial FPGA board with UART, CAN and I/O interfaces
- Manufacturer
G215 is a CompactPCI Serial peripheral board in 3U form factor, compliant with the PICMG CPCI-S.0 specification, whose personality is defined by a Cyclone IV FPGA: the factory configuration brings two UARTs, two CAN bus interfaces and one digital I/O port to the front panel.
The supported physical layers include RS232, RS422 and RS485, besides HDLC, CAN bus, IBIS and GPS, and the individual interfaces are built with SA adapters mounted on board. The link towards the system is a PCI Express connection and the front LEDs report the state of the FPGA configuration.
At a glance
- FPGA / processing: Cyclone IV
- Memory: Up to 64 MB DDR2 SDRAM, FPGA-controlled, e.g., as a buffer memory for more complex
- RAM type: DDR2
- Serial interfaces: RS232
- Board function: Communication
Technical specifications
| FPGA / processing | Cyclone IV |
|---|
| Memory | Up to 64 MB DDR2 SDRAM, FPGA-controlled, e.g., as a buffer memory for more complex4 MB serial Flash for FPGA configuration |
|---|---|
| RAM type | DDR2 |
| Serial interfaces | RS232RS422RS485 |
|---|
| Board function | Communication |
|---|---|
| Architecture standard | CPCI-S.0cPCI 3U |
| Form factor | 3U 8HP |
| Weight | 0.168 kg |
|---|
| Operating altitude | -300–3000 m |
|---|---|
| Operating temperature | -40–85 °C |
| Storage temperature | -40–85 °C |
| MTBF | 529954 h(IEC/TR 62380) |
| Operating systems | VxWorksLinuxWindows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
