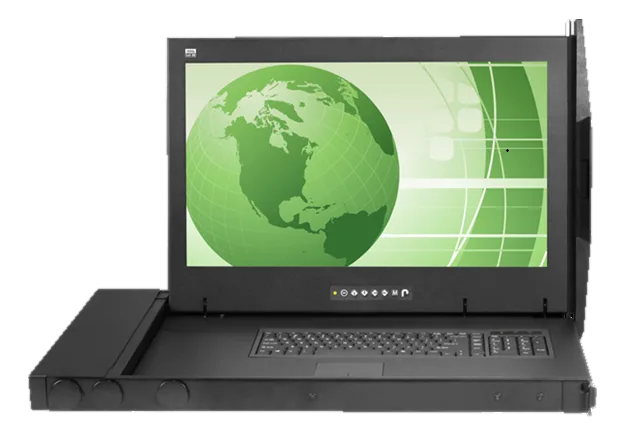

F12119″ rack LCD console with 21.5" display, local KVM and LED backlight
- Manufacturer
- Configurations
- 34 available configurations
F121 is an LCD console for 19″ rack cabinets with an integrated local KVM, intended for direct management of equipment in data centers and industrial environments. The 21.5" display with 16.7 million colors is paired with a panel whose hard-coating surface and 3H hardness resist contact wear.
Brightness of 500 cd/m² and a 0.248 mm pixel pitch define its rendering in operating environments with temperatures between 0 and 55 °C. The power input is available in an AC or a DC version.
The family varies by port count: 8, 16 or 32 port versions, for example part number F121-1201e_EU.
At a glance
- Display size: 21.5 ″
- Resolution: 1920x1080 FHD
- Brightness: 400-599 high cd/m²
- KVM / console type: Local KVM
- Keyboard & pointing device: USB interface
Technical specifications
| Display size | 21.5 ″ |
|---|---|
| Resolution | 1920x1080 FHD |
| Video inputs | Composite BNC(NTSC & PAL · optional)SDI(3G / HD / SD-SDI Broadcast-grade input + · optional)DisplayPort(optional · 1.0)DVI(DVI-D single link · optional)VGA(HDMI 1.4 + VGA ( speakers excluded ) · 1.4) |
| Brightness | 400-599 high cd/m² |
| Contrast ratio | 1000 : 1(typ) |
| Viewing angle | 89/89/89/89 |
| Pixel pitch | 0.248 mm |
| Display colors | 16.7M colors |
| Active area | 476.07 × 267.79 mm |
| Backlight type | LED |
| Response time | 14 ms |
| Surface hardness | 3H |
| Surface treatment | Anti-glare (AG)Hard-coating |
| KVM / console type | Local KVM |
|---|---|
| Keyboard & pointing device | USB interface104-key USB keyboard with either touchpad or trackball(touchpad/trackball) |
| Audio | 3.5mm stereo jackDual stereo, 2W x 2(speaker) |
| AC/DC input | AC+DC |
|---|---|
| Power consumption | 2 W(console · saving)28 W(console)62 W(console w/ kvm)1 W(console / kvm · off)34 W(console w/ kvm · saving) |
| Weight | 14.7 kg15.5 kg21.4 kg(gross)18.9 kg(gross) |
|---|
| Operating temperature | 0–55 °C |
|---|---|
| Storage temperature | -20–60 °C |
| Operating altitude | 4876.8 m |
| MTBF | 30000 h |
| Certifications | REACHCEWEEE (2012/19/UE)FCCUKCARoHS(3) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
Columns show only what changes between configurations: the rest of the sheet applies to the whole family.
| Configuration (PN) | Number of ports |
|---|---|
| F121-1201e_EU | — |
| F121-1602e_EU | 16 |
| F121-801DPB_EU | — |
| F121-801DPE_EU | — |
| F121-801He_EU | 8 |
| F121-801KB_EU | — |
| F121-801KE_EU | — |
| F121-802e_EU | 8 |
| F121-802He_EU | 8 |
| F121-IP1602e_EU | 16 |
| F121-IP802e_EU | 8 |
| F121-IP802He_EU | 8 |
