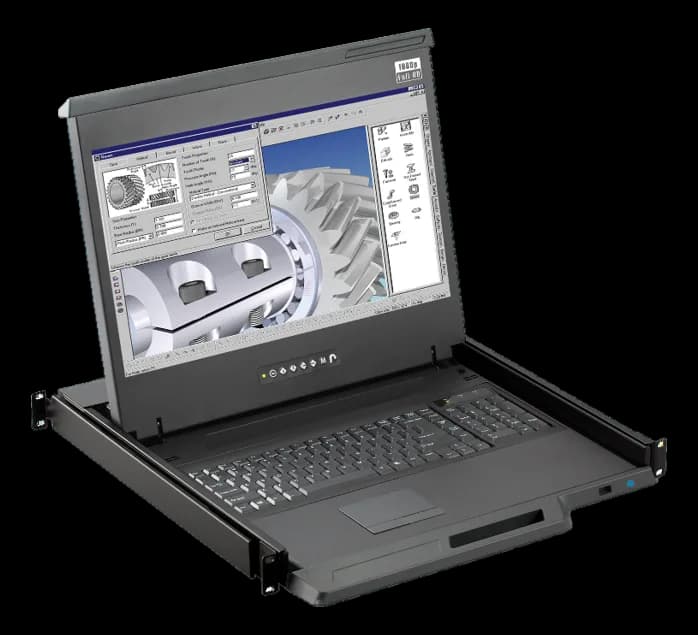

F11717.3" rack LCD console with local KVM and HDMI/VGA inputs
- Manufacturer
- Configurations
- 34 available configurations
F117 is an LCD console for 19″ rack cabinets with local KVM, intended for direct management of equipment in data center and server room environments. The display accepts HDMI and VGA video inputs and runs on a 100~240 V AC power supply.
LED backlighting provides 300 cd/m² brightness with a 25 ms response time. The surface has an anti-glare (AG) treatment and hard-coating with 3H hardness, while the operating temperature range runs from 0 to 55 °C.
The family comprises 30 configurations; a representative part number is F117-1201e_EU.
At a glance
- Touch points: Resistive 1-pt
- KVM / console type: Local KVM
- Number of ports: 12
- USB ports: Optional: Front USB hup port for device access
- Operating temperature: 0–55 °C
Technical specifications
| Touchscreen | Resistive(optional) |
|---|---|
| Aspect ratio | 16:9 |
| Viewing angle | 85/85/85/85 |
| Pixel pitch | 0.1989 mm |
| Display colors | 16.7 M, 8-bit |
| Active area | 381.888 × 214.812 mm |
| Backlight type | LED |
| Response time | 25 ms |
| Surface hardness | 3H |
| Surface treatment | Anti-glare (AG)Hard-coating |
| Touch points | Resistive 1-pt |
| KVM / console type | Local KVM |
|---|---|
| Number of ports | 1232816 |
| USB ports | Optional: Front USB hup port for device access |
| Audio | 3.5mm stereo jack30kΩ / 750mV(input)Dual stereo 2W x 2(speaker)30kΩ / 2.8V(output) |
| Power consumption | 45 W(console w/ kvm)2 W(console · saving)34 W(console w/ kvm · saving)14 W(console)1 W(console / kvm · off) |
|---|
| Weight | 11.6 kg17.5 kg(gross) |
|---|
| Operating temperature | 0–55 °C |
|---|---|
| Storage temperature | -20–60 °C |
| Operating altitude | 4876.8 m |
| MTBF | 15000 h |
| Certifications | CEFCCUKCAULREACHWEEE (2012/19/UE)RoHS(3) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| F117-1201e_EU |
| F117-1602e_EU |
| F117-801DPB_EU |
| F117-801DPE_EU |
| F117-801He_EU |
| F117-801KB_EU |
| F117-801KE_EU |
| F117-802e_EU |
| F117-802He_EU |
| F117-IP1602e_EU |
| F117-IP802e_EU |
| F117-IP802He_EU |
