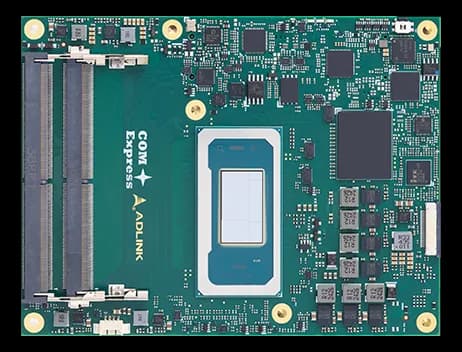

Express-PTLCOM Express Type 6 Basic Computer-on-Module with Intel Core Ultra Series 3 Panther Lake-H
- Manufacturer
- Configurations
- 3 available configurations
Express-PTL is a module compliant with PICMG COM Rev 3.1 Type 6 in Basic form factor, 125 mm x 95 mm: the compute logic resides on the module and the application I/O on the carrier, so a CPU refresh does not require redesign of the baseboard in industrial embedded projects.
The integrated GPU drives up to four simultaneous displays, with resolution up to 8K60 on a single output and 6K60 on four outputs in parallel. The Extreme Rugged variant covers −40~85 °C as a build option on selected SKUs; audio is handled on the Express-BASE6 R3.1 carrier with ALC888 standard support.
Configurations are available with Core Ultra 5 336H, Core Ultra 7 356H or Core Ultra 7 368H.
At a glance
- Integrated NPU, 50 TOPS
- Intel Xe3 graphics, up to 196 EU
- Up to 128 GB DDR5 SO-DIMM
- Wide-range input 8.5–20 V
- On-board TPM 2.0 SPI
Technical specifications
| Processor | Intel® Core™ Ultra Series 3 (Panther Lake-H)Core Ultra 5 336H(optional)Core Ultra 7 356H(optional)Core Ultra 7 368H(optional) |
|---|---|
| TPM | TPM 2.0 |
| Memory | 2× SODIMM DDR5 7200 MT/s |
|---|---|
| Maximum RAM | 128 GB |
| RAM type | DDR5 |
| Storage | 4x SATA 6Gb/s (via PCIe-to-4x SATA IC, consumer temp grade)NVMe SSD in place of SATA 0-3 (build option, project basis) |
|---|
| Video outputs | Single/dual channel 18/24-bit LVDS from eDP-to-LVDS IC, max. resolution 1920x1200@60Hz in dual modeDDI 1/2/3 supporting DP 2.1, HDMI 2.1, DVIUSB4, DP, HDMI, DVI, VGA, LVDS, eDP (build option) display optionsBuild option in place of LVDS, 4× lanes, eDP 1.4bSupported by build option via DP-to-VGA IC (in place of DDI 3), max. resolution 1920x1200@60Hz |
|---|
| Ethernet ports | 2.5GbE and 1000/100/10 Mbit/s Ethernet connection · GbE0_SDP if TSN support enabled (TBC) |
|---|---|
| Digital I/O | 8× GPIO (GPI with interrupt) |
| Audio | On the carrier Express-BASE6 R3.1 (ALC888 standard support) |
| USB ports | 4x USB 3.2/2.0/1.1 (USB 0-3), 4x USB 2.0/1.1 (USB 4-7) |
| Architecture standard | COM Express Type 6 |
|---|---|
| Form factor | Basic |
| Supply voltage | 8.5–20 V |
|---|
| Dimensions | COM Express R3.1 compliant, Basic Size (125mm x 95mm) |
|---|
| Operating temperature | -40–85 °C |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| EXPRESS-PTL-336H |
| EXPRESS-PTL-358H |
| EXPRESS-PTL-368H |
