KVM Switches for 19″ Rack Cabinets
DX1171U 16.2″ rack LCD console with local KVM and LED backlight
- Manufacturer
- Configurations
- 57 available configurations

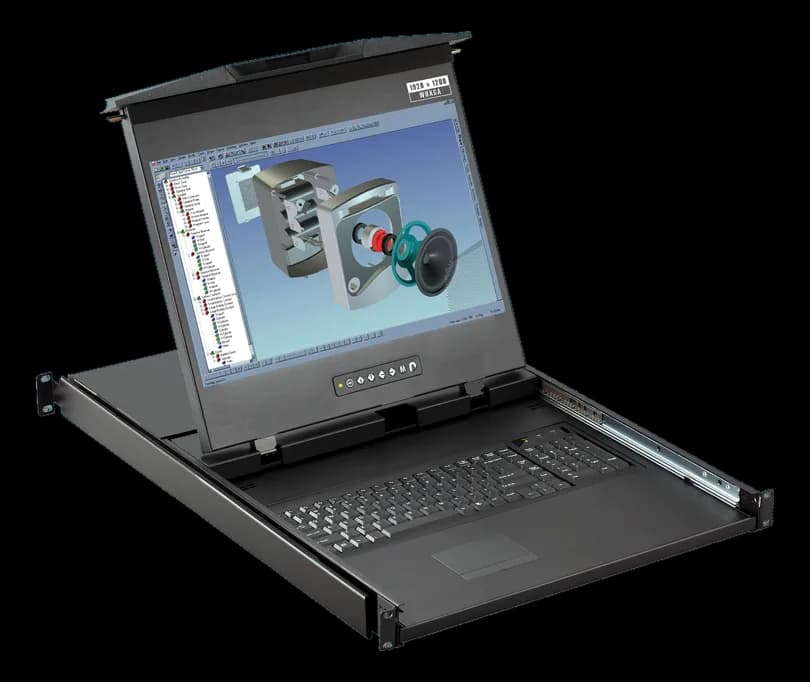

DX117 is a 1U LCD console for 19″ rack cabinets, with a 16.2″ display and local KVM for direct management of the servers installed in the rack.
The panel uses LED backlighting with 300 cd/m² brightness and a 30 ms response time; the surface receives an anti-glare (AG) treatment and hard-coating with 3H hardness. On the environmental side, the operating temperature is 0~55 °C with an operating altitude up to 4876.8 m.
The family comprises 56 configurations; example part number DX117-1201e_EU.
At a glance
- Display size: 16.2 ″
- Resolution: 1920x1200 WUXGA
- Video inputs: DVI
- Brightness: Up to 399 standard cd/m²
- KVM / console type: Local KVM
Technical specifications
| Display size | 16.2 ″ |
|---|---|
| Resolution | 1920x1200 WUXGA |
| Video inputs | DVIVGAComposite BNCHDMISDI |
| Brightness | Up to 399 standard cd/m² |
| Contrast ratio | 800 : 1(typ) |
| Viewing angle | 89/89/89/89 |
| Pixel pitch | 0.191 mm |
| Display colors | 16.7 M, 8-bit |
| Active area | 343.8 × 214.9 mm |
| Backlight type | LED |
| Response time | 30 ms |
| Surface hardness | 3H |
| Surface treatment | Hard-coatingAnti-glare (AG) |
| KVM / console type | Local KVM |
|---|---|
| Keyboard & pointing device | 104-key USB keyboard with touchpad |
| Audio | 3.5mm stereo jackDual Stereo Speaker2ch Linear PCM ( 32 / 44.1 / 48 KHz )SMPTE 299M / 272M-C(SDI)2 x 2W(speaker) |
| AC/DC input | AC |
|---|---|
| Power input | 100–240 V180–425 V(optional)36–75 V(optional)9–18 V(optional)66–160 V(optional)18–36 V(optional) |
| Power consumption | 4 W(single console · saving)29 W(with kvm · saving)34 W(single console)59 W(console w/ kvm)59 W(with kvm)1 W(console / kvm · off)1 W(single console · off)29 W(console w/ kvm · saving)4 W(console · saving) |
| Rack units | 1 U |
|---|---|
| Weight | 13 kg12 kg19 kg(gross)18 kg(gross) |
| Operating temperature | 0–55 °C |
|---|---|
| Storage temperature | -20–60 °C |
| Operating altitude | 4876.8 m |
| MTBF | 20000 h |
| Certifications | FCCWEEE (2012/19/UE)REACHCEUKCARoHS(3) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| DX117-1201b_EU |
| DX117-1201e_EU |
| DX117-1602b_EU |
| DX117-1602e_EU |
| DX117-801DPB_EU |
| DX117-801DPE_EU |
| DX117-801KB_EU |
| DX117-801KE_EU |
| DX117-802b_EU |
| DX117-802e_EU |
| DX117-IP1602b_EU |
| DX117-IP1602e_EU |
