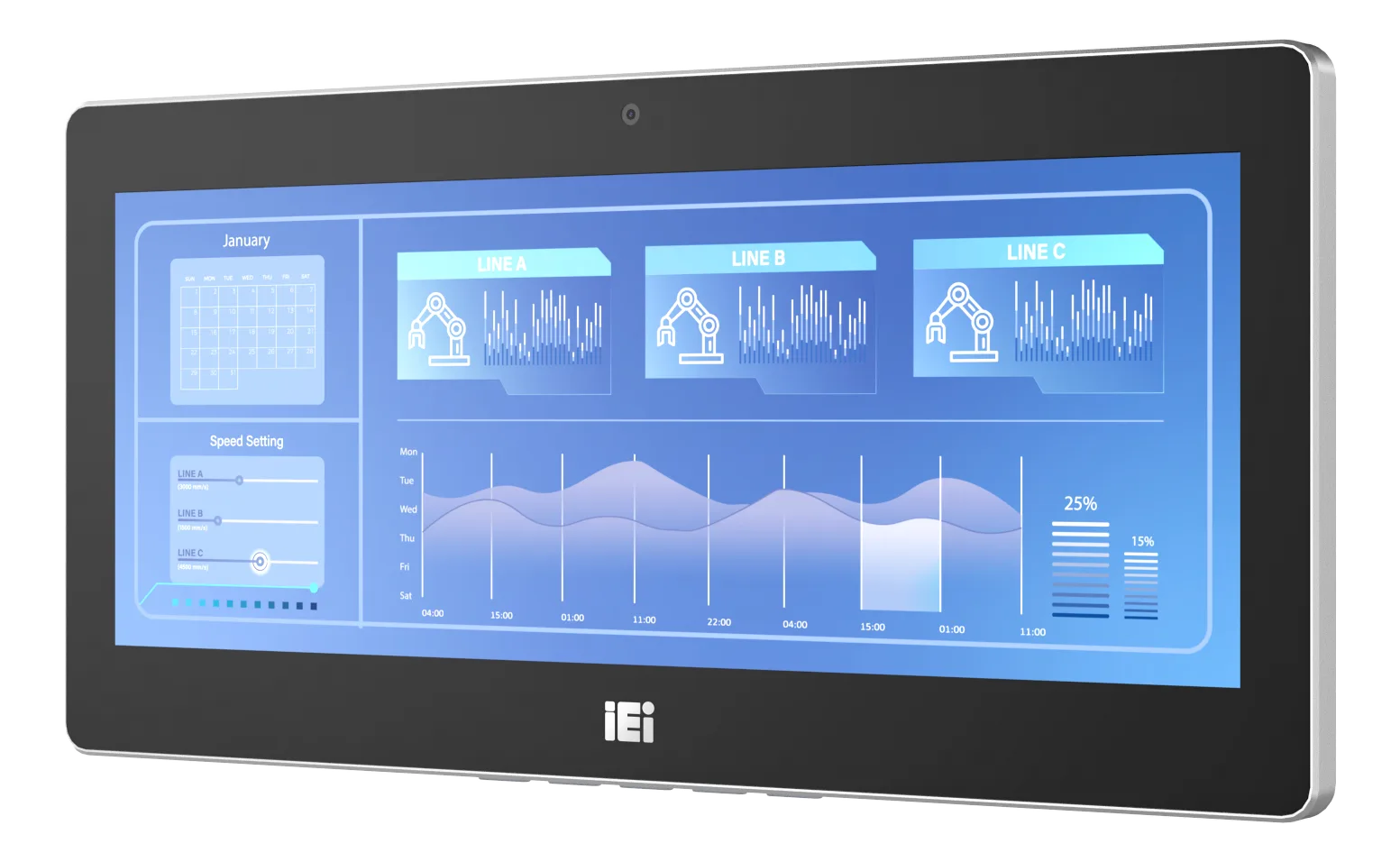

DM2-UW123850 cd/m² industrial touch monitor with IP65 front
- Manufacturer
DM2-UW123 is an IEI industrial monitor for machine consoles, supervision desks and operator stations; it is offered for environments where lighting is intense and the readability of the panel remains a requirement.
For the power connection there are a 9V-36V DC jack and a 3-pin terminal block; the permitted storage temperature runs from -20 to 70 °C and the frame is in a Black + Silver finish.
At a glance
- Display size: 12.3 ″
- Brightness: 600-999 outdoor cd/m²
- Touchscreen: PCAP
- Contrast ratio: 1000:1
- Backlight MTBF: 30000 h
Technical specifications
| Display size | 12.3 ″ |
|---|---|
| Resolution | 1920x720(max) |
| Brightness | 600-999 outdoor cd/m² |
| Touchscreen | PCAP |
| Contrast ratio | 1000:1 |
| Touch points | 10-point Projected capacitive touch window (Anti-UV(pcap) |
| Touch controller | ilitek |
| Backlight MTBF | 30000 h |
| Viewing angle | 170°/170° |
| Display colors | 16.7M |
| Surface treatment | Anti-glare (AG) |
| USB ports | 1× USB 3.2 Gen1 Type-B4× USB 3.2 Gen1 Type-A (5V2A) (Lite without) |
|---|---|
| Audio | 1× Line out |
| Other I/O | 1× 9V-36V DC jack · 1× 3-pin terminal block |
| AC/DC input | DC |
|---|---|
| Power input | DC V |
| Dimensions | 160.6 × 49.4 × 326.6 mm |
|---|---|
| Cutout dimensions | 310.80 × 141.00 mm |
| Chassis color | Black + Silver |
| IP rating | Front IP65 |
|---|---|
| Operating temperature | -20–60 °C |
| Storage temperature | -20–70 °C |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
