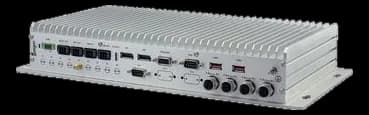

BL51ERailway and vehicle embedded computer with Intel Atom x, certified to EN 50155
- Manufacturer
BL51E is an embedded computer for technical cabinets and railway and vehicle onboard installations: rack or wall mounting, air cooling, operation from -40 to 85 °C and EN 50155 and E-Mark certifications.
The quad-core Intel Atom x platform (1.6–2 GHz, 12 W) is paired with 8 GB of DDR3 with ECC, 32 GB eMMC, an SD slot and a 2.5" SATA bay; the I/O comprises four Gigabit M12 ports with PoE PSE, two DisplayPort 1.2, two USB 2.0 and CAN bus, with 4G/LTE and GPS/GNSS modules and support for Linux and Windows 10 IoT.
At a glance
- CPU generation: Apollo Lake
- Processor: Intel Atom x7-E3950, 4 cores, 4 threads, 1.6 GHz, 2.0 GHz Turbo Boost, 12 W, 2 MB cache
- CPU TDP: 12 W
- Memory: 8 GB DDR3 DRAM
- RAM type: DDR3
Technical specifications
| CPU generation | Apollo Lake |
|---|---|
| Processor | Intel Atom x7-E3950, 4 cores, 4 threads, 1.6 GHz, 2.0 GHz Turbo Boost, 12 W, 2 MB cache |
| CPU TDP | 12 W |
| Memory | 8 GB DDR3 DRAM |
|---|---|
| RAM type | DDR3 |
| ECC support | Yes |
| Storage | SD cardSSD/HDD 2.5" (SATA)32 GB eMMC |
|---|
| Video outputs | 2× DisplayPort 1.24096×2160 @ 60 Hz, 24 bpp (DisplayPort 1.2a)(4096x2160) |
|---|
| Ethernet ports | 4× 10/100/1000BASE-T (M12 X-coded, presa)PSE (Power Sourcing Equipment)(PoE) |
|---|---|
| USB ports | 2× USB 2.0 (Type-A) |
| Audio | Uscita line stereo, differenziale(line-out)Ingresso line stereo, single-ended(line-in) |
| CAN bus | 1× CAN non isolata (D-Sub 9-pin, spina) |
| Wireless | 4G/LTEGPS/GNSS |
|---|
| Expansion | PCIe Mini Card Slot B(Mini-PCIe) |
|---|
| AC/DC input | DC |
|---|---|
| Power consumption | 35 W |
| Mounting | Wall MountRack Mount |
|---|---|
| Weight | 4.25 kg |
| Cooling | Air-cooled (VITA class) |
|---|---|
| Operating temperature | -40–85 °C |
| Storage temperature | -40–85 °C |
| MTBF | 186024 h(IEC/TR 62380) |
| Operating altitude | 3000 m(EN 50125-1) |
| Certified market sectors | RailwayAutomotive |
|---|---|
| Certifications | E-MarkEN 50155 |
| Operating systems | LinuxWindows 10 IoT |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
