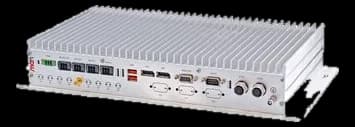

BL50WFanless railway embedded computer, certified to EN 50155
- Manufacturer
BL50W is a fanless embedded computer for rolling stock: aluminum chassis of 3 kg, EN 50155 and EN 45545 certifications, EN 61373 shock and vibration testing and operating altitude up to 3000 m.
The dual-core AMD G-Series T48N APU at 1.4 GHz with 2 GB of soldered DDR3 (4 GB on request) drives two DisplayPort up to 2560×1600; the I/O comprises two isolated Gigabit Ethernet on M12, two USB 2.0 and one isolated RS-232 serial port, with storage on SD, mSATA and 2.5" SATA drives, Wi-Fi and 4G/LTE radio modules and 14.4 W consumption.
At a glance
- Processor: AMD Embedded G-Series T48N, Dual-Core, 1.4 GHz processor core frequency
- RAM type: DDR3
- Storage: 1× mSATA, SATA Rev. 2.x, fino a 300 MB/s
- USB ports: 2× USB 2.0 (Type-A)
- Serial interfaces: Seriale su D-Sub frontale, fino a 115 200 bit/s, buffer TX/RX 60 byte, RTS/CTS, isolata
Technical specifications
| Processor | AMD Embedded G-Series T48N, Dual-Core, 1.4 GHz processor core frequency |
|---|---|
| Graphics | AMD Radeon HD 6310, Dual independent display support, Dual DisplayPort, Maximum resolution: 2560x1600 each port, Embedded in T48N APU |
| Memory | 2 GB DDR3 SDRAM (4 GB su richiesta)(optional)2 GB DDR3 SDRAM(1066 MT/s) |
|---|---|
| RAM type | DDR3 |
| Storage | 1× mSATA, SATA Rev. 2.x, fino a 300 MB/s1× slot SD (via USB 2.0) |
|---|
| Video outputs | 2× DisplayPort 1.1a (AUX, hot-plug)2560×1600 per porta(2560x1600) |
|---|
| Ethernet ports | 2× GbE M12, isolate2× Fast Ethernet M12 (su richiesta)(optional) |
|---|---|
| USB ports | 2× USB 2.0 (Type-A) |
| Serial interfaces | Seriale su D-Sub frontale, fino a 115 200 bit/s, buffer TX/RX 60 byte, RTS/CTS, isolata |
| Audio | 1× HD audio (su richiesta): stereo in/out, SPDIF out, via D-Sub 9-pin al posto di un SA-Adapter(optional) |
| Wireless | 4G/LTEWi-Fi2G/GPRS |
|---|
| Power consumption | 14.4 W |
|---|
| Dimensions | 390 × 66 mm |
|---|---|
| Weight | 3 kg |
| Chassis material | alluminio |
| Cooling | Fanless |
|---|---|
| MTBF | 198993 h(IEC/TR 62380) |
| Operating altitude | -300–3000 m |
| Certified market sectors | Railway |
|---|---|
| Certifications | EN 45545 fireEN 50155 |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
