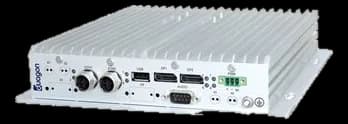

Box PC industriale rugged duagon BC51M, vista d'angolo con connettori M12 e DisplayPort

BC51MIntel Atom railway embedded computer for rack or wall, EN 50155 certified

Manufacturer

BC51M is an embedded computer for technical cabinets and on-board railway installations, mountable in a rack or on a wall: air-cooled, EN 50155 certification, shock and vibration to EN 61373, weight of 1.8 kg.

The Intel Atom x platform (2–4 cores, 12 W TDP) pairs 32 GB eMMC with an SD slot and a 2.5" SATA drive; the two 10/100/1000BASE-T ports are on M12 X-coded connectors, video comes out on DisplayPort up to 4K at 60 Hz and the 4G/LTE and GNSS modules cover mobile applications.

At a glance

CPU generation: Apollo Lake
Processor: Intel Atom x7-E3950, 4 cores, 4 threads, 1.6 GHz, 2.0 GHz Turbo Boost, 12 W, 2 MB cache
CPU TDP: 12 W
Storage: SSD/HDD 2.5" (SATA)
USB ports: 1× USB 2.0 (Type-A), di servizio

Request information Full specifications ↓

Technical specifications

CPU generation	Apollo Lake
Processor	Intel Atom x7-E3950, 4 cores, 4 threads, 1.6 GHz, 2.0 GHz Turbo Boost, 12 W, 2 MB cacheIntel Atom x5-E3930, 2 cores, 2 threads, 1.3 GHz, 1.8 GHz Turbo Boost, 6.5 W, 2 MB cache(optional)
Graphics	Processor graphics
CPU TDP	12 W

Storage	SSD/HDD 2.5" (SATA)1× scheda SDeMMC (saldata)1× SATA 2.5"32 GB(eMMC)

Video outputs	2× DisplayPort 1.2 (di servizio)4096×2160 @ 60 Hz, 24 bpp (DisplayPort 1.2a)(4096x2160)

Ethernet ports	2× 10/100/1000BASE-T (M12 X-coded, presa)
USB ports	1× USB 2.0 (Type-A), di servizio
Audio	Ingresso line stereo, single-ended(line-in)Uscita line stereo, differenziale(line-out)

Wireless	4G/LTEGPS/GNSS

Power consumption	35 W

Mounting	Wall MountRack Mount
Weight	1.8 kg

Cooling	Air-cooled (VITA class)
Operating temperature	-40–70 °C
Storage temperature	-40–85 °C
MTBF	304288 h(IEC/TR 62380)
Operating altitude	1400 m(EN 50125-1)
