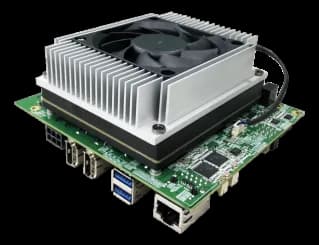

AX720-X64AGX Xavier Edge AI board with two Ethernet ports
- Manufacturer
- Configurations
- 3 available configurations
AX720-X64 is an Aetina Edge AI board intended for inference in the plant: it processes video streams and data series coming from the field locally, without depending on the link to the data center.
The AGX Xavier module declares 32 TOPS and carries an 8-core NVIDIA Carmel Arm CPU with LPDDR4x memory. The unit weighs 0.64 kg and accepts a direct current input from 9 to 19 V.
At a glance
- AI module: NVIDIA Jetson AGX Xavier
- AI performance: 32 TOPs TOPS
- CPU class: ARM Carmel
- Processor: 8-core NVIDIA Carmel Arm®v8.2 64-bit CPU 8MB L2 + 4MB L3
- Memory: 64 GB 256-bit LPDDR4x, 136.5 GB/s
Technical specifications
| AI module | NVIDIA Jetson AGX Xavier |
|---|---|
| AI performance | 32 TOPs TOPS |
| CPU class | ARM Carmel |
| Processor | 8-core NVIDIA Carmel Arm®v8.2 64-bit CPU 8MB L2 + 4MB L3 |
| Graphics | 512-core NVIDIA Volta™ GPU With 64 Tensor Cores |
| Tensor cores | 64 |
| CUDA cores | 512 |
| Memory | 64 GB 256-bit LPDDR4x, 136.5 GB/s |
|---|---|
| RAM type | LPDDR4x |
| Storage | 32 GB eMMC 5.1 |
|---|
| Video outputs | 2× HDMI (Type-A) |
|---|
| Ethernet ports | 3× GbE (RJ-45), 1× onboard, 2× extension adapter |
|---|---|
| USB ports | 2× USB 3.2 Gen1 (Type-A)1× USB 3.2 Gen2 (Type-C)1× USB 2.0 OTG (AB) |
| Serial interfaces | 1× RS-232 |
| Audio | HDMI Integrated |
| Digital I/O | 5× GPIO(bidir) |
| CAN bus | 2× CAN 2.0b |
| Other I/O | 2 x UART1 / UART2 · 1 x UART3 (Debug Only) · 1 x I2C · 1 x SPI |
| Expansion | 1× M.2 E-Key 2230 (PCIe/USB2.0, WIFI/BT), 1× M.2 M-Key 2280 (NVMe), 1× slot MicroSD1× M.2 M-Key 2280 (NVMe), storage |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 9–19 V |
| Dimensions | 131 × 30.5 × 120 mm |
|---|---|
| Weight | 0.64 kg |
| Cooling | Fan (active) |
|---|
| Certifications | FCCCE |
|---|
| Operating systems | Linux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| AX720-X64-BN70 |
| AX720-X64-FN01 |
| AX720-X64-FN03 |
