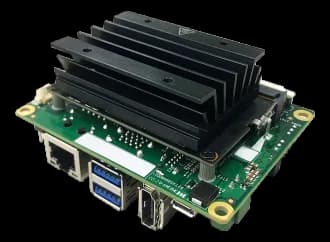

AX110-NANOEdge AI board with an NVIDIA Jetson Nano module
- Manufacturer
AX110-NANO is an entry-level Aetina edge AI platform, suited to vision nodes and smart gateways where the inference load is limited but has to stay in the field.
The Jetson Nano module pairs a quad-core Arm Cortex-A57 CPU with LPDDR4x memory. The unit weighs 0.125 kg, is powered at 12 V DC and declares a module power draw between 1.098 and 17.061 W.
At a glance
- AI module: NVIDIA Jetson Nano
- AI performance: Up to 40
- CPU class: ARM Cortex-A57
- Processor: Quad-core ARM Cortex A57 MPCore processor
- Memory: 4 GB 128-bit LPDDR4x
Technical specifications
| AI module | NVIDIA Jetson Nano |
|---|---|
| AI performance | Up to 40 |
| CPU class | ARM Cortex-A57 |
| Processor | Quad-core ARM Cortex A57 MPCore processor |
| Graphics | 128-core NVIDIA Maxwell™ GPU |
| CUDA cores | 128 |
| Memory | 4 GB 128-bit LPDDR4x |
|---|---|
| RAM type | LPDDR4x |
| Storage | 16 GB eMMC 5.1 |
|---|
| Video outputs | 1× eDP1× HDMI (Type-A) |
|---|
| Ethernet ports | 1× GbE (RJ-45) |
|---|---|
| USB ports | 1× USB 2.0 (Micro-AB), solo OTG2× USB 3.2 Gen1 (Type-A) |
| Serial interfaces | 1× RS-232 |
| Audio | HDMI Integrated |
| Digital I/O | 5× GPIO(bidir) |
| Other I/O | 1 x I2C · 2 x UART1 / UART2 · 1 x UART3 (Debug Only) · 1 x SPI |
| Expansion | 1× M.2 E-Key 2230 (PCIe/USB2.0) |
|---|
| AC/DC input | DC |
|---|---|
| Power input | DC V |
| Power consumption | 1.098–17.061 W |
| Dimensions | 87.4 × 28.7 × 67.4 mm |
|---|---|
| Weight | 0.125 kg |
| Operating temperature | -25–80 °C |
|---|---|
| Storage temperature | -40–85 °C |
| Certifications | CEFCC |
|---|
| Operating systems | Linux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
