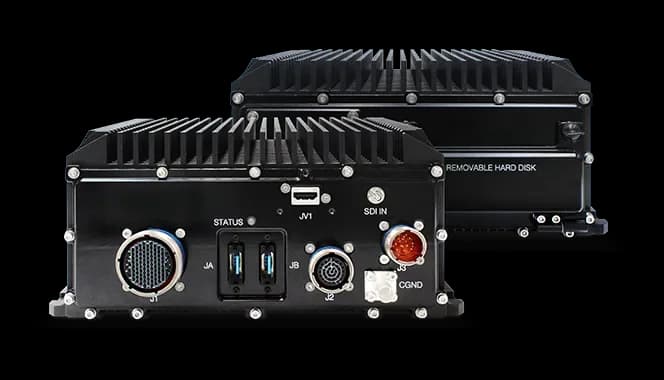

AWS EVO-SDIAdvanced Mission Computer with Dual Removable Disk and HD-SDI Input
- Manufacturer
The AWS EVO-SDI is a high-performance rugged Mission Computer designed for heavy edge workloads and real-time video processing applications. Featuring an HD-SDI video input alongside HDMI and VGA outputs, the AWS EVO-SDI is SWaP-C optimized with a fanless design that requires no external airflow. The AWS EVO-SDI features a high-end eight-Core 11th Gen Intel® Xeon® W Processor (Tiger Lake) with 32GB DDR4 dualchannel memory to provide excellent overall performance. Its video interfaces include 1x HDMI output, 1x HD-SDI input, and 1x VGA output, enabling seamless integration with highresolution sensors and situational awareness systems. The system provides robust connectivity, including 4x Gigabit Ethernet ports, 2x USB 3.0, 4x USB 2.0, PS/2, 4x COM ports, and 2x SATA 6 Gb/s ports with RAID support. For storage, the AWS EVO-SDI offers a Type II CFlash slot accessible from the front panel, and two front-ounted hot-swappable SATA bays supporting 2.5″ SSDs with Secure Erase. The AWS EVO-SDI is design to meet MIL-STD-810G and RTCA/DO-160G, ensuring reliable operation in harsh environments.
At a glance
- DO-160G RTCA Qualified
- 810G MIL-STD Qualified
- SDI HD-SDI Input
- 0 dBA Fanless
A GOMA ELETTRONICA division
A GOMA RUGGED SOLUTIONS product
The AWS series belongs to GOMA RUGGED SOLUTIONS, GOMA's division for MIL-STD qualified systems. The full datasheet for this model, with configurations and qualifications, lives on its own site.
Visit GOMA RUGGED SOLUTIONSTechnical specifications
| Processor | 11th Gen Intel Xeon(optional)W-11865MRE(optional) |
|---|---|
| CPU class | Intel Xeon |
| Memory | Up to 32 GB DDR4 |
|---|---|
| RAM type | DDR4 |
| Maximum RAM | 32 GB |
| Storage | 2x 2.5″ SATA SSD · 1x CFAST |
|---|
| Video outputs | HDMI, VGA,SDI |
|---|---|
| Connectors | MIL-DTL-38999 · USB 3.0 with retention |
| Architecture standard | COM Express |
|---|
| Expansion | 1 x mPCIe/mSATA slot |
|---|
| Dimensions | 256 x 116 x 203 mm |
|---|---|
| Weight | 5.3 kg |
| Cooling | Fanless |
|---|---|
| Operating temperature | −45~70 |
| Storage temperature | -40–85 °C |
| Certifications | DO-160MIL-STD-810MIL-STD-461 |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
