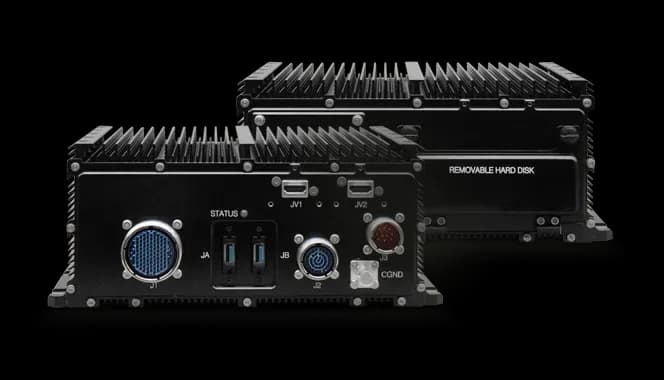

AWSMission Computer with Single Removable Disk
- Manufacturer
The AWS is a high performance rugged Mission Computer designed for multi-media applications. Featuring multiple display control and audio interfaces, the AWS is SWaP-C optimized and has a fanless design with no external airflow prescriptions. The AWS features a powerful 64-bit 6th/7th Gen Intel® Core™ Processor (Kaby Lake/Skylake-H) including Intel® Hyper-Threading Technology (4 cores, 8 threads) and an up to 32GB DDR4 dual-channel memory with optional ECC support to provide an excellent overall performance. Video outputs feature three independent ports (2x HDMI + 1x VGA) while input/output ports include Audio, 4x Gigabit Ethernet ports, 2x USB 3.0 ports, 4x USB 2.0 ports, PS/2 and 4x COM ports. The AWS rugged Mission Computer is equipped with a CFast slot accessible from the front panel and with a 2.5” SATA bay suitable for the installation of a hot SWaP removable Solid State Disk with Secure Erase option. A miniPCIe slot is also available for further expansion. The AWS is designed to meet MIL-STD-810G certifications and is fully qualified according to RTCA/DO-160G.
At a glance
- 810G MIL-STD Qualified
- 461G MIL-STD EMC
- 1× Removable SSD
- 0 dBA Fanless
A GOMA ELETTRONICA division
A GOMA RUGGED SOLUTIONS product
The AWS series belongs to GOMA RUGGED SOLUTIONS, GOMA's division for MIL-STD qualified systems. The full datasheet for this model, with configurations and qualifications, lives on its own site.
Visit GOMA RUGGED SOLUTIONSTechnical specifications
| Processor | 6th Gen Intel Core(optional)i7-6822EQ(optional)7th Gen Intel Xeon(optional)E3-1505M v6(optional) |
|---|---|
| CPU class | Intel Xeon |
| Memory | Up to 32 GB DDR4 |
|---|---|
| RAM type | DDR4 |
| Maximum RAM | 32 GB |
| Storage | 2x 2.5″ SATA SSD · 1x CFAST |
|---|
| Video outputs | HDMI, VGA |
|---|---|
| Connectors | MIL-DTL-38999 · USB 3.0 with retention |
| Architecture standard | COM Express |
|---|
| Expansion | 1 x mPCIe slot |
|---|
| Dimensions | 256 x 116 x 203 mm |
|---|---|
| Weight | 5.3 kg |
| Cooling | Fanless |
|---|---|
| Operating temperature | −20~55 |
| Storage temperature | -40–85 °C |
| Certifications | DO-160MIL-STD-810MIL-STD-461 |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
